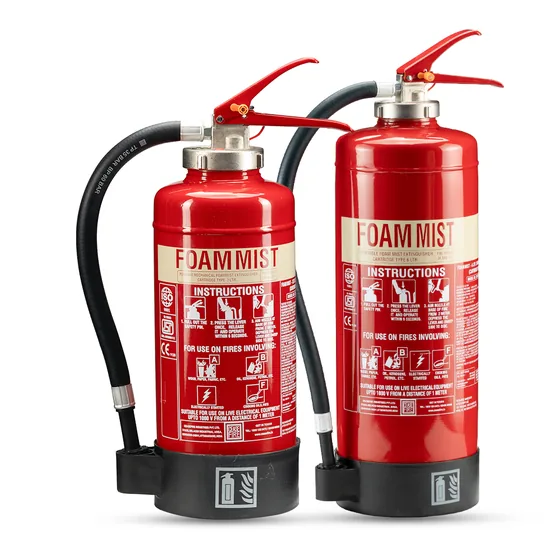

Authorised distributor for CeasefireStainless steel cartridge type extinguisher in 3 and 6 ltr, where foam in the container combines with CO2 from the cartridge and leaves the nozzle as a mist under 80 microns. The 3 ltr size is rated 2A, 55B, 25F.
Standards and approvals: ISO 9001, PED, IS 15683, BIS
Sizes: 3 L, 6 L
| Specification | 3 L | Fire Ext Foammist 3 L SS CT Red | 6 L | Fire Ext Foammist 6 L SS CT Red |
|---|---|---|---|---|
| Ratings | 2A, 55B, 25F | 3A, 89B, 75F | ||
| Product Code | CF-001246 | CF-001160 | ||
| Capacity of Agent | 3 (L) | 6 (L) | ||
| Filling Tolerance By Volume | 0 to +5 (%) | 0 to +5 (%) | ||
| Agent | 6% of KV Foam 3% C-6 | 6% of KV Foam 3% C-6 | ||
| Certification Standard | ISO 9001, PED, IS 15683 | ISO 9001, PED, IS 15683 | ||
| Valve Material of Construction (MOC) | Brass | Brass | ||
| Valve Construction | Forging and machining | Forging and machining | ||
| Shell Material of Construction (MOC) | SS 304 (1.4301) | SS 304 (1.4301) | ||
| Shell Construction | Drawn Rolled & MIG Welded | Drawn Rolled & MIG Welded | ||
| Min. Wall Thickness | 1.5 (mm) | 1.5 (mm) | ||
| Diameter of Shell (approx.) | 140 (mm) | 175 (mm) | ||
| Total Height (approx.) | 445 (mm) | 600 (mm) | ||
| Test Pressure | 35 (Bar) | 35 (Bar) | ||
| Anti-Corrosive Treatment External | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | ||
| Service Pressure | 10 (Bar) | 10 (Bar) | ||
| Type of Operating Mechanism | Squeeze Grip | Squeeze Grip | ||
| Cartridge Size | 60 (Gm) | 120 (Gm) | ||
| MOC and Length of Hose | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 300mm (mm) | EPDM Rubber Braided Hose Pipe with nozzle min. Length of Flexible Portion of Hose 500 mm (mm) | ||
| Minimum Throw Distance (BRD as per IS-15683) | > 2 (Meter) | > 2 (Meter) | ||
| Min. Discharge Time (as per IS-15683) | 9 (Sec.) | 15 (Sec.) | ||
| Applicable to Type of Fire | A, B, F & Electrical Started Fire. | A, B, F & Electrical Started Fire. | ||
| IS Fire Rating | 2A | 55B | 25F | 3A | 89B | 75F | ||
| Operating Temperature Range | From +5 to +60 (°C) | From +5 to +60 (°C) | ||
| Extinguisher Label | Screen printed | Screen printed | ||
| Glow in the Dark Locator | Yes | Yes | ||
| Green Packaging (Environment Friendly) | Yes | Yes | ||
| Gross Weight* | 7.0 to 7.20 (Kg) | 11.10 to 12.10 (Kg) | ||
| Product Warranty** | 9 (Year) | 9 (Year) | ||
| Mounting Bracket | J hanger | J hanger |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 13 L
A 13 ltr watermist extinguisher that can be carried as a backpack or used trolley mounted, fitted with two 6 ltr stored low pressure containers. It comes in pure mist and foam variants and gives 60 seconds of continuous discharge.
Sizes: 10 L, 50 L
Cartridge driven compressed air foam system in a 10 ltr backpack and a 50 ltr trolley, for large Class A, B and electrical fires. The gun's rotating motor breaks the agent into tiny droplets, and the 10 ltr unit is rated 34A, 233B.
Sizes: 9 L, 50 L
Cartridge driven compressed air foam system in 9 ltr and 50 ltr sizes for Class A, B and electrically started fires. Its gun breaks water into fine droplets delivered through special nozzles, and nearly all of the mist turns to steam in the fire.
Sizes: 2 L, 6 L
Stainless steel foam mist extinguisher in 2 and 6 ltr, using water with 1% Telesolve foaming agent, for Class A, B, F and electrically started fires. The 2 ltr size is rated 5A, 55B, 25F with a 3 m throw.
Sizes: 2 L, 6 L
Stainless steel foam mist extinguisher in 2 and 6 ltr, using a lower 0.5% dose of Telesolve foaming agent, for Class A, B, F and electrically started fires. The 2 ltr size is rated 5A, 34B, 25F with a 3 m throw.
Sizes: 2 L, 3 L, 6 L, 9 L
Stainless steel watermist extinguisher in 2, 3, 6 and 9 ltr for Class A, F and electrically started fires, using water only. The 2 ltr size is rated 5A, 25F with a 3 m throw.
A mobile stored pressure unit that discharges ultra fine water mist with AR-AFFF foam, giving fast cooling with low water use and a foam seal that resists re-ignition. Suited to mixed risk areas such as offices, banks and schools.
Sizes: 250 L
A 250 litre compressed air foam system with wet and dry foam modes for large area protection in hospitals, power plants, marine and offshore sites. Rated 55A:233B-IVB and certified by a NABL accredited laboratory to EN parameters.
Sizes: 9 L
9 L water mist extinguisher charged with water and foam and pressurised with nitrogen at 15 bar, rated 4A, 233B and 75F. Meant for multi risk areas where safety, cleanliness and environmental concerns matter.
Sizes: 9 L
Compressed air foam backpack holding 9 L of water with 6 percent AFFF, expelled by air from a 2 L cylinder at 200 bar. Rated 55A 233B with a 14 m jet, for first intervention from fire trucks, industrial sites and marine settings.
Sizes: 9 L, 12 L
A wearable, self-contained CAFS unit carried by a single operator, producing compressed air foam mist through a discharge gun for confined spaces, forests and places wheeled equipment cannot reach. The 12 litre version holds 33% more agent than the 9 litre for a longer discharge.
Sizes: 45 L, 50 L
A wheeled CAFS water mist unit for large area suppression of Class A, B and F fires, handled by a two-person crew. The 50 litre version is the highest capacity CAFS water mist unit in the Savemax range.
