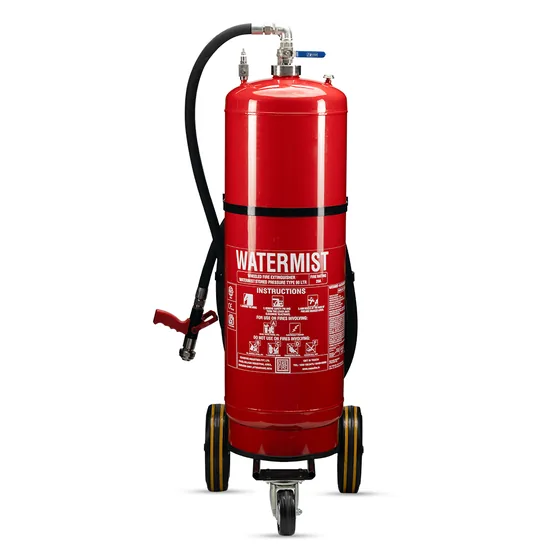

Authorised distributor for CeasefireStainless steel trolley mounted mist extinguisher in 20, 45 and 90 ltr, certified to IS 16018, for areas with a large fire risk or big stocks of combustible material. Four multi rotors in each container produce a mist under 80 microns.
Standards and approvals: IS-16018, EUROCERT, BIS, PED, CE
| Specification | FIRE EXT WATER MIST 20 L SS SINGLE TROLLEY SP RED (QUAD) | FIRE EXT FOAM 20 L SS SP RED (QUAD) | FIRE EXT WATER MIST 45 L SS SINGLE TROLLEY SP RED(QUAD) | FIRE EXT FOAM 45 L SS SP RED (QUAD) | FIRE EXT WATER MIST 90 L SS SINGLE TROLLEY SP RED (QUAD) | FIRE EXT FOAM 90 L SS SP RED(QUAD) | Water Mist | Foam Mist |
|---|---|---|---|---|---|---|---|---|
| PRODUCT CODE | CF-001247 | CF-001248 | CF-001249 | CF-001250 | CF-001251 | CF-001252 | ||
| AGENT | WATER | WATER + 1% OF TELISOVE 1 % | WATER | WATER + 1% OF TELISOVE 1 % | WATER | WATER + 1% OF TELISOVE 1 % | ||
| BULK RANGE DISCHARGE (BRD AS PER IS-16018) | > 3 METERS | > 3 METERS | > 3 METERS | > 3 METERS | > 3 METERS | > 3 METERS | ||
| CERTIFICATION OR VERIFING BODY | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | EUROCERT, BIS | ||
| CERTIFICATION TYPE | IS16018, PED | PED, IS16018 | IS16018, PED | PED, IS16018 | IS16018, PED | PED, IS16018 | ||
| BIS MARKING | YES | YES | YES | YES | YES | YES | ||
| CE MARKING | YES | YES | YES | YES | YES | YES | ||
| GROSS WEIGHT (APPROX) | 59.00 TO 61.00 KG | 59.0 TO 61.0 KG | 98.75 TO 103.25 KG | 98.75 TO 103.25 KG | 150.50 TO 159.50 KG | 150.50 TO 159.50 KG | ||
| NET CONTENTS | 19.00 TO 21.00 LTR | 19.00 TO 21.00 LTR | 42.75 TO 47.25 LTR | 42.75 TO 47.25 LTR | 85.50 TO 94.50 LTR | 85.50 TO 94.50 LTR | ||
| HEIGHT OF FIRE EXT. (APPROX) | 1075 MM | 1075 MM | 1200 MM | 1200 MM | 1615 MM | 1615 MM | ||
| DISCHARGE MECHANISM | LEVER OPERATED BALL VALVE | LEVER OPERATED BALL VALVE | LEVER OPERATED BALL VALVE | LEVER OPERATED BALL VALVE | LEVER OPERATED BALL VALVE | LEVER OPERATED BALL VALVE | ||
| APPLICABLE ON FIRES | A & ELECTRICAL STARTED FIRE | A & B FIRE | A & ELECTRICAL STARTED FIRE | A & B FIRE | A & ELECTRICAL STARTED FIRE | A & B FIRE | ||
| IS 16018 RATINGS | 10A | 10A, 233B | 15A | 15A, 233B | 20A | 20A, 233B | ||
| CAN CONSTRUCTION | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | DRAWN ROLLED AND MIG WELDED | ||
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | ||
| EXTERNAL COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | EPOXY POLYESTER POWDER COATING | ||
| WARRANTY IN YEARS | 6 | 6 | 6 | 6 | 6 | 6 | ||
| APPROX. GUN WEIGHT IN KG | 1.30 KG | 2.02 KG | 1.30 KG | 2.02 KG | 1.30 KG | 2.02 KG | ||
| WORKING PRESSURE | 15BAR | 15BAR | 15BAR | 15BAR | 15BAR | 15BAR | ||
| DIA. OF SHELL (OD) | 300 MM | 300 MM | 350 MM | 350 MM | 400.0MM | 400.0MM | ||
| OPERATING TEMPERATURE | 5°C TO +55°C | 5°C TO +55°C | 5°C TO +55°C | 5°C TO +55°C | 5°C TO +55°C | 5°C TO +55°C | ||
| HYDROSTATIC TEST PRESSURE | 37.5 BAR | 37.5 BAR | 37.5 BAR | 37.5 BAR | 37.5BAR | 37.5BAR | ||
| CYLINDER MATERIAL SPEC. | SS 304 (1.4301) | SS 304 (1.4301) | SS 304 (1.4301) | SS 304 (1.4301) | SS 304 (1.4301) | SS 304 (1.4301) | ||
| BODY THICKNESS (APPROX) | 1.8 MM | 1.8 MM | 2.0 MM | 2.0 MM | 2.0 MM | 2.0 MM | ||
| Ratings | 10A - 20A | 10A - 20A, 233B |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 13 L
A 13 ltr watermist extinguisher that can be carried as a backpack or used trolley mounted, fitted with two 6 ltr stored low pressure containers. It comes in pure mist and foam variants and gives 60 seconds of continuous discharge.
Sizes: 10 L, 50 L
Cartridge driven compressed air foam system in a 10 ltr backpack and a 50 ltr trolley, for large Class A, B and electrical fires. The gun's rotating motor breaks the agent into tiny droplets, and the 10 ltr unit is rated 34A, 233B.
Sizes: 9 L, 50 L
Cartridge driven compressed air foam system in 9 ltr and 50 ltr sizes for Class A, B and electrically started fires. Its gun breaks water into fine droplets delivered through special nozzles, and nearly all of the mist turns to steam in the fire.
Sizes: 2 L, 6 L
Stainless steel foam mist extinguisher in 2 and 6 ltr, using water with 1% Telesolve foaming agent, for Class A, B, F and electrically started fires. The 2 ltr size is rated 5A, 55B, 25F with a 3 m throw.
Sizes: 2 L, 6 L
Stainless steel foam mist extinguisher in 2 and 6 ltr, using a lower 0.5% dose of Telesolve foaming agent, for Class A, B, F and electrically started fires. The 2 ltr size is rated 5A, 34B, 25F with a 3 m throw.
Sizes: 2 L, 3 L, 6 L, 9 L
Stainless steel watermist extinguisher in 2, 3, 6 and 9 ltr for Class A, F and electrically started fires, using water only. The 2 ltr size is rated 5A, 25F with a 3 m throw.
A mobile stored pressure unit that discharges ultra fine water mist with AR-AFFF foam, giving fast cooling with low water use and a foam seal that resists re-ignition. Suited to mixed risk areas such as offices, banks and schools.
Sizes: 250 L
A 250 litre compressed air foam system with wet and dry foam modes for large area protection in hospitals, power plants, marine and offshore sites. Rated 55A:233B-IVB and certified by a NABL accredited laboratory to EN parameters.
Sizes: 9 L
9 L water mist extinguisher charged with water and foam and pressurised with nitrogen at 15 bar, rated 4A, 233B and 75F. Meant for multi risk areas where safety, cleanliness and environmental concerns matter.
Sizes: 9 L
Compressed air foam backpack holding 9 L of water with 6 percent AFFF, expelled by air from a 2 L cylinder at 200 bar. Rated 55A 233B with a 14 m jet, for first intervention from fire trucks, industrial sites and marine settings.
Sizes: 9 L, 12 L
A wearable, self-contained CAFS unit carried by a single operator, producing compressed air foam mist through a discharge gun for confined spaces, forests and places wheeled equipment cannot reach. The 12 litre version holds 33% more agent than the 9 litre for a longer discharge.
Sizes: 45 L, 50 L
A wheeled CAFS water mist unit for large area suppression of Class A, B and F fires, handled by a two-person crew. The 50 litre version is the highest capacity CAFS water mist unit in the Savemax range.
