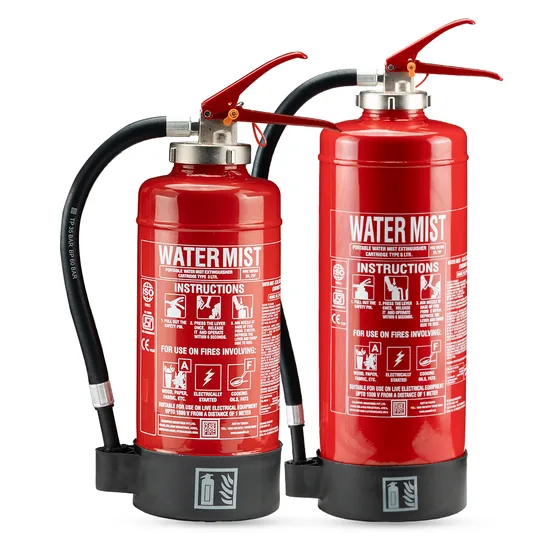

Ceasefire Watermist Fire Extinguisher, Cartridge Type (Spot Pressure)
Ceasefire logoAuthorised distributor for Ceasefire

Ceasefire Watermist Fire Extinguisher, Cartridge Type (Spot Pressure)

WatermistCartridge type3 ltr and 6 ltr2A, 25FIS 15683

Stainless steel cartridge type watermist extinguisher in 3 and 6 ltr, where nitrogen from the cartridge drives the water through a mist nozzle as 54 micron droplets. The 3 ltr size is rated 2A, 25F.

  • For Class A, F and electrically started fires
  • Not under constant pressure: pressure builds only when used
  • Can be refilled on site straight away
  • Squeeze grip discharge, bulk range discharge above 2 m
  • BIS and PED certified to IS 15683, CE marked
  • 9 year warranty

Standards and approvals: EUROCERT, BIS, PED, IS 15683, CE

Sizes: 3 L, 6 L

Ask price & availability

Download the official Ceasefire catalogue (PDF, 38.6 MB)

Specifications

Specifications
Specification3 LFIRE EXT WATER MIST 3 L SS CT RED6 LFIRE EXT WATER MIST 6 L SS CT RED
Ratings2A, 25F3A, 75F
PRODUCT CODESCF-001245CF-001159
AGENTWATERWATER
STORED PRESSURE/CARTRIDGECARTRIDGE TYPECARTRIDGE TYPE
CERTIFICATION OR VERIFING BODYEUROCERT, BISEUROCERT, BIS
CERTIFICATION TYPEPED, IS 15683PED, IS 15683
BIS MARKINGYESYES
CE MARKINGYESYES
CARTRIDGE SIZE60 GRAM90 GRAM
BULK RANGE DISCHARGE (BRD AS PER IS-15683)> 2 METERS> 2 METERS
APPROX GROSS WEIGHT6.90 TO 7.20 KG11.50 TO 12.10 KG
APPROX NET MASS3.00 TO 3.15 LTR6.00 TO 6.30 LTR
DISCHARGE MECHANISMSQUEEZE GRIPSQUEEZE GRIP
APPLICABLE ON FIRESA, F & ELECTRICAL STARTED FIREA, F & ELECTRICAL STARTED FIRE
IS 15683 RATINGS2A, 25F3A, 75F
CAN CONSTRUCTIONDRAWN ROLLED & MIG WELDEDDRAWN ROLLED & MIG WELDED
VALVE / CAP CONSTRUCTIONFORGING AND MACHININGFORGING AND MACHINING
EXTERNAL COATINGEPOXY POLYESTER POWDEREPOXY POLYESTER POWDER
WARRANTY IN YEARS99
WORKING PRESSURE15 BAR10 BAR
HYDROSTATIC TEST PRESSURE35 BAR35 BAR
APPROX DIA. OF SHELL (OD)140 MM160 MM
APPROX HEIGHT OF FIRE EXT.445 MM610 MM
APPROX BODY THICKNESS1.5 MM1.5 MM
CYLINDER MATERIAL SPEC.SS 304 (1.4301)SS 304 (1.4301)
OPERATING TEMPERATURE5 °C TO 60°C5 °C TO 60°C

Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.

More Ceasefire Watermist, Foam Mist & CAFS

Water Mist and CAFS Fire Extinguishers from other brands

Minimax

Minimax CAFS Backpack, Compressed Air Foam, 9 L

CAFS backpackWater + AFFF 6%9 L

Sizes: 9 L

Compressed air foam backpack holding 9 L of water with 6 percent AFFF, expelled by air from a 2 L cylinder at 200 bar. Rated 55A 233B with a 14 m jet, for first intervention from fire trucks, industrial sites and marine settings.
