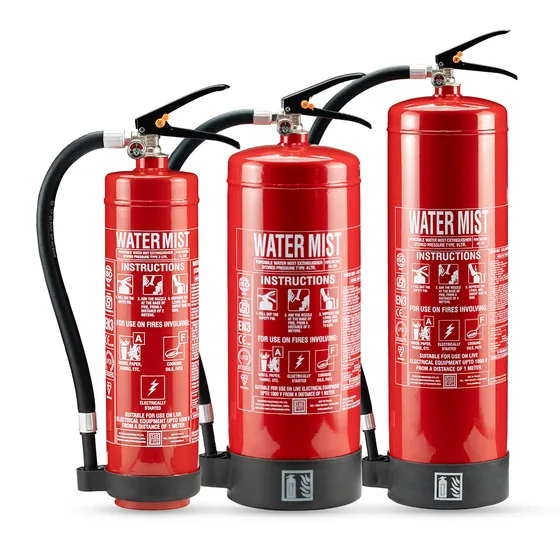

Ceasefire Watermist Fire Extinguisher, Stored Pressure (BIS)
Ceasefire logoAuthorised distributor for Ceasefire

Ceasefire Watermist Fire Extinguisher, Stored Pressure (BIS)

WatermistStored pressure2 ltr to 9 ltrIS 15683Stainless steel

Stainless steel stored pressure watermist extinguisher in 2, 3, 6 and 9 ltr for Class A, F and electrically started fires, using water only. Rotors and special nozzles create a 40 to 60 micron mist that turns to steam in the fire.

  • BIS, LPCB, BSI Kitemark and PED certified to IS 15683
  • Uses potable water with no chemicals, so little collateral damage
  • Squeeze grip discharge and pressure gauge
  • SS 304 body, helium leak tested
  • Bulk range discharge above 2 m
  • 9 year warranty

Standards and approvals: IS-15683, EUROCERT, BIS, LPCB, BSI, PED, EN3, KITEMARK, CE, BSI Kitemark

Sizes: 2 L, 3 L, 6 L, 9 L

Ask price & availability

Download the official Ceasefire catalogue (PDF, 38.6 MB)

Specifications

Specifications
Specification2 LFIRE EXT WATER MIST 2 L SS SP RED3 LFIRE EXT WATER MIST 3 L SS SP RED6 LFIRE EXT WATER MIST 6 L SS SP RED9 LFIRE EXT WATER MIST 9 L SS SP RED
Ratings1A-5A, 25F2A, 25F3A-13A, 75F4A-21A, 75F
PRODUCT CODESCF-001118CF-001240CF-001119CF-001120
AGENTWATERWATERWATERWATER
STORED PRESSURE/CARTRIDGESTORED PRESSURESTORED PRESSURESTORED PRESSURESTORED PRESSURE
BULK RANGE DISCHARGE (BRD AS PER IS-15683)> 2 METERS> 2 METERS> 2 METERS> 2 METERS
CERTIFICATION OR VERIFING BODY*EUROCERT, BIS, LPCB, BSIEUROCERT, BIS*EUROCERT, BIS, LPCB, BSI*EUROCERT, BIS,LPCB, BSI
CERTIFICATION TYPEPED, IS 15683 , EN3PED, IS 15683PED, IS 15683 , EN3PED, IS 15683 , EN3
DUAL CERTIFICATEYESNOT APPLICABLEYESYES
BIS MARKINGYESYESYESYES
LPCB MARKINGYESNOT APPLICABLEYESYES
KITEMARK MARKINGYESNOT APPLICABLEYESYES
CE MARKINGYESYESYESYES
APPROX GROSS WEIGHT4.40 TO 4.70 KG5.80 TO 6.0 KG10.30 TO 10.90 KG14.40 TO 14.80 KG
APPROX NET VOLUME1.90 TO 2.00 LTR3.00 TO 3.15 LTR5.70 TO 6.00 LTR8.55 TO 9.00 LTR
DISCHARGE MECHANISMSQUEEZE GRIPSQUEEZE GRIPSQUEEZE GRIPSQUEEZE GRIP
APPLICABLE ON FIRESA, F & ELECTRICAL STARTED FIREA, F & ELECTRICAL STARTED FIREA, F & ELECTRICAL STARTED FIREA, F & ELECTRICAL STARTED FIRE
IS 15683 RATINGS1A, 25F2A, 25F3A, 75F4A, 75F
EN 3 RATINGS5A, 25FNOT APPLICABLE13A, 75F21A, 75F
CAN CONSTRUCTIONDRAWN ROLLED & MIG WELDEDDRAWN ROLLED & MIG WELDEDDRAWN ROLLED & MIG WELDEDDRAWN ROLLED & MIG WELDED
VALVE / CAP CONSTRUCTIONFORGING AND MACHININGFORGING AND MACHININGFORGING AND MACHININGFORGING AND MACHINING
EXTERNAL COATINGEPOXY POLYESTER POWDEREPOXY POLYESTER POWDEREPOXY POLYESTER POWDEREPOXY POLYESTER POWDER
HELIUM LEAK DETECTION TESTINGYESYESYESYES
WARRANTY IN YEARS9999
WORKING PRESSURE15 BAR15 BAR15 BAR15 BAR
HYDROSTATIC TEST PRESSURE35 BAR35 BAR35 BAR35 BAR
APPROX DIA. OF SHELL (OD)140 MM140 MM175 MM175 MM
APPROX HEIGHT OF FIRE EXT.485 MM445 MM575 MM690 MM
APPROX BODY THICKNESS1.5 MM1.5 MM1.5 MM1.5 MM
CYLINDER MATERIAL SPEC.SS 304 (1.4301)SS 304 (1.4301)SS 304 (1.4301)SS 304 (1.4301)
OPERATING TEMPERATURE5 °C TO 60°C5 °C TO 60°C5 °C TO 60°C5 °C TO 60°C

Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.

More Ceasefire Watermist, Foam Mist & CAFS

Water Mist and CAFS Fire Extinguishers from other brands

Minimax

Minimax CAFS Backpack, Compressed Air Foam, 9 L

CAFS backpackWater + AFFF 6%9 L

Sizes: 9 L

Compressed air foam backpack holding 9 L of water with 6 percent AFFF, expelled by air from a 2 L cylinder at 200 bar. Rated 55A 233B with a 14 m jet, for first intervention from fire trucks, industrial sites and marine settings.
