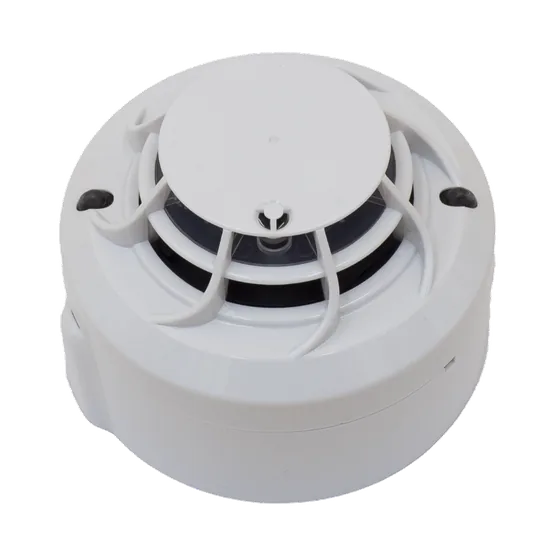

System Sensor Agile 22051TLE-RF Wireless Multi-Criteria Photo-Thermal-IR Detector
A wireless multi-criteria detector that combines photoelectric, thermal and infrared sensing for more resistance to false alarms.
- Photo-thermal-IR multi-criteria sensing
- Mesh network, 18 RF channels at 868MHz, up to 400 m free air range
- 4 CR123A 3V batteries, average 5 year battery life
- Patented battery service life prediction
- Tamper-resist lock on the sensor head, weight 200g with batteries
- EN 54-5, EN 54-7 and EN 54-25, CPR
Standards and approvals: CPR
Specifications
Specifications
| Specification | Photo-Therma L-IR Detector |
|---|---|
| Ordering Code | 22051TLE-RF-yy |
| Radio Frequency | 865-870 MHz |
| Transmitting Power | <25mW e.r.p. |
| Supply | 4 CR123A 3V Batteries |
| Height | 70mm (with B501RF base) |
| Length / Diameter | 102mm |
| Weight (With batteries) | 200g |
| Humidity (No condensation) | 10: 93 %RH |
| Operating Temperature | -30: 60 °C |
| Fire Standard | EN54-25 | EN54-5 | EN54-7 |
| Package weight | 263g |
| Package size (mm) | 125 L | 110 W | 75 H |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
