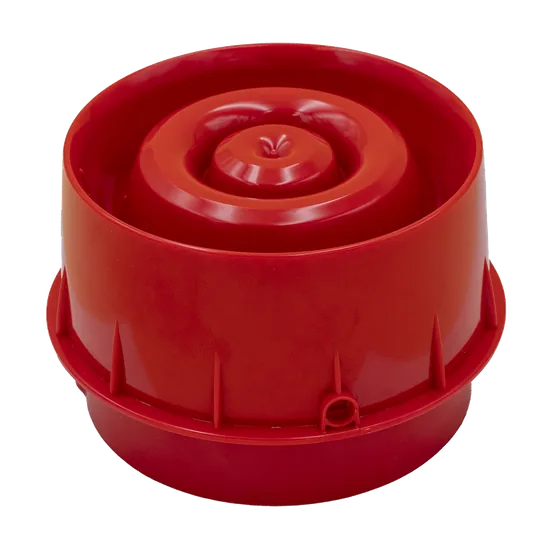

System Sensor Agile Wireless Sounder, Red (WSO-RR-RF) or White (WSO-WW-RF)
A battery-powered wireless sounder with a red or white body, giving sound output comparable to a wired sounder.
- 102 dB(A) maximum sound pressure level
- 32 user selectable tones through AgileIQ, dynamic tone selection by Advanced protocol commands
- IP21, operating temperature -30 to 60°C
- 4 CR123A 3V batteries, average 5 year battery life
- 18 RF channels at 868MHz, up to 400 m free air range
- EN 54-3 and EN 54-25, CPR
Standards and approvals: CPR
Specifications
Specifications
| Specification | Wal L mounted Red or White Sounder WSO-RR-RF | Wal L mounted Red or White Sounder WSO-WW-RF |
|---|---|---|
| Ordering Code | WSO-RR-RF | WSO-WW-RF |
| Radio Frequency | 865-870 MHz | 865-870 MHz |
| Transmitting Power | <25mW e.r.p. | <25mW e.r.p. |
| Supply | 4 CR123A 3V Batteries | 4 CR123A 3V Batteries |
| Height | 75mm (with B501RF base) | 75mm (with B501RF base) |
| Length / Diameter | 121mm | 121mm |
| Weight (With batteries) | 373g | 373g |
| Humidity (No condensation) | 10: 93 %RH | 10: 93 %RH |
| Operating Temperature | -30: 60 °C | -30: 60 °C |
| Fire Standard | EN54-25 | EN54-3 | EN54-25 | EN54-3 |
| Package weight | 385g | 385g |
| Package size (mm) | 140 L | 155 W | 95 H | 140 L | 155 W | 95 H |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
