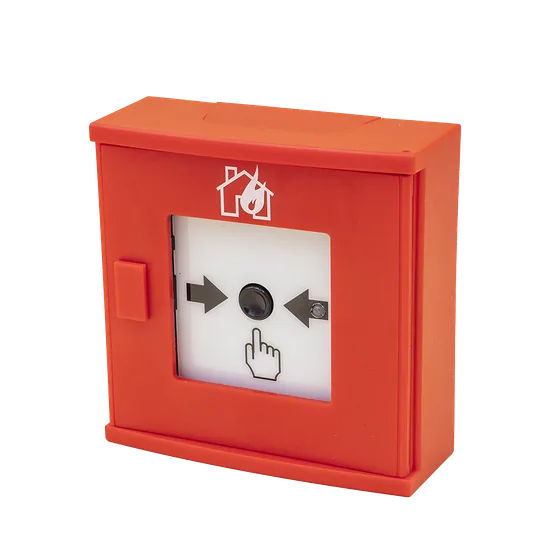

System Sensor Agile Wireless DKM Call Point, Red (DKMCPR) or Blue (DKMCPB)
A battery-powered wireless call point of the German DKM style, available in red or blue, with a tamper-resist lock on the DKM door.
- Red (DKMCPR) or blue (DKMCPB) versions
- Tamper-resist lock prevents unauthorised opening of the DKM door
- 2 integrated orthogonal antennas, up to 400 m free air range
- 4 CR123A 3V batteries, average 5 year battery life, battery redundancy
- Operating temperature -30 to 60°C, weight 386g with batteries
- EN 54-11 and EN 54-25, CPR
Standards and approvals: CPR
Specifications
Specifications
| Specification | German Red or Blue Manua L Cal L Point DKMCPR | German Red or Blue Manua L Cal L Point DKMCPB |
|---|---|---|
| Ordering Code | DKMCPR-RF | DKMCPB-RF |
| Radio Frequency | 865-870 MHz | 865-870 MHz |
| Transmitting Power | <25mW e.r.p. | <25mW e.r.p. |
| Supply | 4 CR123A 3V Batteries | 4 CR123A 3V Batteries |
| Height | 134mm | 134mm |
| Length / Diameter | 134mm | 134mm |
| Depth | 52mm | 52mm |
| Weight (With batteries) | 386g | 386g |
| Humidity (No condensation) | 10: 93 %RH | 10: 93 %RH |
| Operating Temperature | -30: 60 °C | -30: 60 °C |
| Fire Standard | EN54-25 | EN54-11 | EN54-25 | EN54-11 |
| Package weight | 460g | 460g |
| Package size (mm) | 140 L | 155 W | 95 H | 140 L | 155 W | 95 H |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
