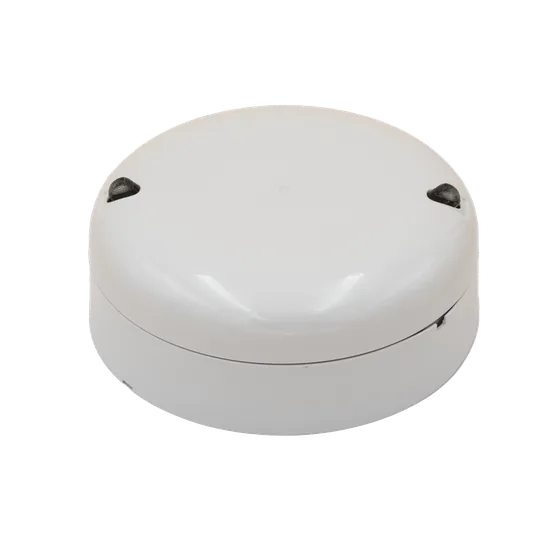

System Sensor Agile M200G-RF Wireless Gateway
The loop-powered gateway that connects Agile wireless devices into System Sensor protocol loops. It plugs directly onto a standard B501AP base with no extra wiring.
- Loop powered, 24V communication line supply
- Plugs directly onto a standard B501AP base
- Up to 8 gateways per loop
- 18 RF channels at 868MHz, 2 integrated antennas, up to 400m free air range
- Tamper-resist lock against removal from its base, weight 90g
- EN 54-17, EN 54-18 and EN 54-25, CPR
Standards and approvals: CPR
Specifications
Specifications
| Specification | Loop powered Gateway |
|---|---|
| Ordering Code | M200G-RF-yy |
| Radio Frequency | 865-870 MHz |
| Transmitting Power | <25mW e.r.p. |
| Supply | Communication Line Supply Range: 24V | Stand by Current: 230uA |
| Height | 42mm (with B501AP base) |
| Length / Diameter | 102mm |
| Weight (With batteries) | 90g |
| Humidity (No condensation) | 10: 93 %RH |
| Operating Temperature | -30: 60 °C |
| Fire Standard | EN54-25 | EN54-18 | EN54-17 |
| Package weight | 132g |
| Package size (mm) | 125 L | 110 W | 75 H |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
