Honeywell Li-ion Tamer Gen 3 Sensing Nodes
The off-gas sensors of the Li-ion Tamer Gen 3 system, which give early warning of lithium-ion battery failures.

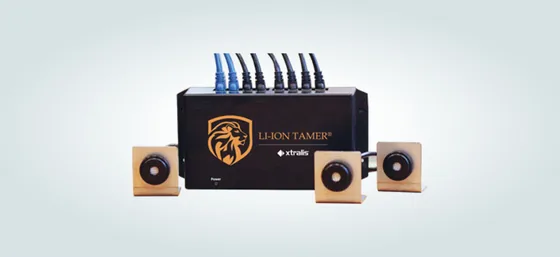

Dealer for HoneywellHoneywell Li-ion Tamer Rack Monitoring System
A plug-and-play system that monitors lithium-ion battery racks for off-gas events, which occur early in a battery failure. It is made up of off-gas sensors and a controller.
- Detects lithium-ion battery off-gas events early in the failure
- Early detection allows mitigation before thermal runaway
- Two main parts: off-gas sensors and a controller
- Plug-and-play design for simple installation
- Input power 8 to 28 VDC
- EN 61326 and RoHS listed
Standards and approvals: EN 61326, RoHS
Specifications
Specifications
| Specification | Details | Details | Details | Details | Details | Details | Details | Details |
|---|---|---|---|---|---|---|---|---|
| Dimensions [mm] | 210 (W) x 113 (L) x 63 (H) | |||||||
| Input power range | 8 to 28 VDC | |||||||
| Max sensors per controller | 15 | |||||||
| System outputs | Digital outputs/MODBUS | |||||||
| Controller (no sensors) | 2.4 W (@ 24VDC) | 1.4 W (@ 12 VDC) | |||||||
| Sensor | 275 mW (@ 5 VDC) | |||||||
| Controller (fully populated, 15 sensors) | 6.6 W (@ 24 VDC) | 5.6 W (@ 12 VDC) | |||||||
| Fuse Rating | 3.5 A | |||||||
| Baud rate | 9600 | |||||||
| Parity | None | |||||||
| Stop bit | One | |||||||
| Hardware | RS232 3-wire (TX, RX, ground) | |||||||
| Target lifetime | > 10 years | |||||||
| Warranty | 1 year | |||||||
| Target gases | Lithium ion battery off- gassing compounds | |||||||
| Min. detection threshold | < 1 ppm/sec | |||||||
| Response time | 5 seconds | |||||||
| Fault detection | Single cell failure | |||||||
| Temperature | -10 to +60oC | |||||||
| Humidity | 5 to 95% RH | |||||||
| Max temperature change | 8.6oC/min | |||||||
| Connector type | 2x 10-pin Molex | |||||||
| Signal type | Digital | |||||||
| Signal level, normal | HIGH, 8 to 28 VDC (Input voltage) 100mA max per channel | |||||||
| Signal level, alarm | LOW, ~0 VDC | |||||||
| LT-SEN-M | Monitoring sensor | |||||||
| LT-SEN-R | Reference sensor | |||||||
| LT-CTR-C | Combined controller | |||||||
| LT-ACC-PCL | 10' Power Cable | |||||||
| LT-ACC-DCL | 10' Digital Output Cable | |||||||
| LT-ACC-MCL-25 | 25' Monitoring Sensor Cable (RJ45 Black) | |||||||
| LT-ACC-MCL-50 | 50' Monitoring Sensor Cable (RJ45 Black) | |||||||
| LT-ACC-MCL-100 | 100' Monitoring Sensor Cable (RJ45 Black) | |||||||
| LT-ACC-RCL-25 | 25' Reference Sensor Cable (RJ45 Blue) | |||||||
| LT-ACC-RCL-50 | 50' Reference Sensor Cable (RJ45 Blue) | |||||||
| LT-ACC-RCL-100 | 100' Reference Sensor Cable (RJ45 Blue) | |||||||
| LT-ACC-CCL-1 | 1' Controller Daisy Chain Cable (RJ45 Grey) | |||||||
| LT-ACC-CCL-3 | 3' Controller Daisy Chain Cable (RJ45 Grey) | |||||||
| LT-ACC-CCL-25 | 25' Controller Daisy Chain Cable (RJ45 Grey) | |||||||
| LT-ACC-IPA | MODBUS TCP/IP Adapter | |||||||
| LT-ACC-SCL | MODBUS Serial Cable | |||||||
| LT-ACC-RLY | Form C Relay | |||||||
| LT-ACC-TST | DEC Bump Test Bottle |
Specifications as published by Honeywell. Please confirm the exact model with us before ordering.
