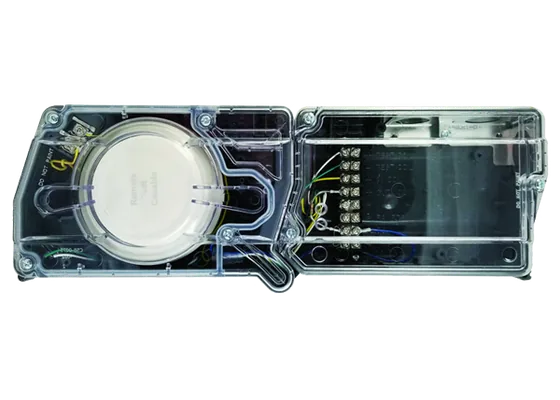

Dealer for NotifierA photoelectric duct smoke detector designed to simplify duct installation, fitting square or rectangular mounting configurations.
Standards and approvals: UL: S911, S3705, ULC: S635, CSFM: 3242-1653:0209, FM approved
| Specification | Details |
|---|---|
| Size | (Rectangle) 14.38 in (37 cm) Length; 5 in (12.7 cm) Width, 2.5 in (6.6 cm) Depth. |
| Size (2) | (Square) 7.75 in (19.7 cm) Length; 9 in (22.9 cm) Width; 2.5 in (6.35 cm) Depth. |
| Weight | 1.6 lb (0.73 kg). |
| Operating Temperature Range | -4°F to 158°F (-20°C to 70°C). |
| Storage Temperature Range | -22°F to 158°F (-30°C to 70°C). |
| Operating Humidity Range | 0% to 95% relative humidity (non-condensing). |
| Air Duct Velocity | 100 to 4,000 ft/min (0.5 to 20.32 m/s). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
An aspirating smoke detector with a built-in SLC module that communicates directly with Notifier panels over the SLC loop, offered in one-pipe and four-pipe models (VEP-A00-1P-NTF-VN, VEP-A00-P-NTF-VN and VEP-A10-P-NTF-VN).
An aspirating smoke detector with sector addressability for up to four sectors and a built-in SLC module for direct connection to Notifier panels (VES-A00-P-NTF-VN and VES-A10-P-NTF-VN).
An aspirating smoke detector with an ultra-wide sensitivity range, backward compatible with VLP, and a built-in SLC module for direct connection to Notifier panels (VEU-A00-NTF-VN and VEU-A10-NTF-VN).
An aspirating smoke detector that draws air from separate sampling points through microbore tubes, so it can pinpoint the location of a fire threat. It has three sensitivity settings and an IP40 enclosure.
A very early warning aspirating smoke detector for small, business-critical areas of less than 500 m2 (5,380 sq ft). It samples air continuously through a pipe network and detects very small amounts of smoke with light scattering.
An addressable reflector-type linear beam smoke detector that works on infra red light obscuration, for large open spaces such as warehouses and atriums. The combined transmitter and receiver connects directly to an analogue loop.
An intelligent reflector-type beam smoke detector that uses IR video imaging, for spacious rooms, open areas and high ceilings, with only one device to install and align.
An addressable reflector-type linear optical beam detector that connects directly to an analogue loop, for buildings with large open spaces.
The 6500 addressable beam detector with a servo-operated test filter, so both the optics and the electronics can be tested remotely.
