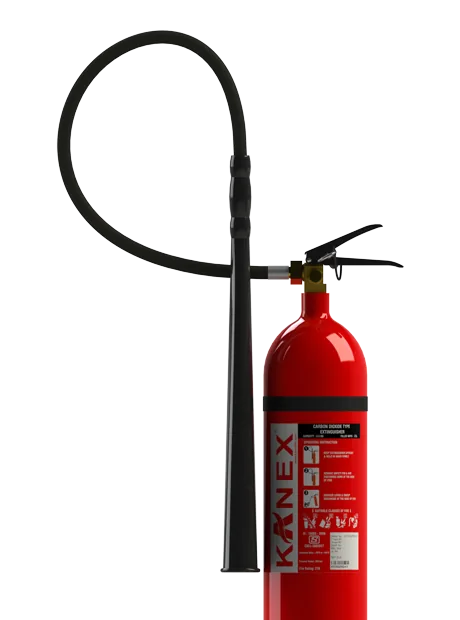

Authorised distributor for KanexPortable CO2 extinguisher in the RQ series with a squeeze type lever valve for fast one hand operation. Supplied in 2 kg, 3 kg and 4.5 kg sizes.
Standards and approvals: IS 2878:2004, BIS, CE, CCOE/PESO
Sizes: 2 kg, 3 kg, 4.5 kg
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 2 kg | KFCSQZRQ-2 | 21B | 9 Sec. | 2 m | 60 / 105 / 205 bar | 9.5 or 10.5 kg | 580 mm |
| 3 kg | KFCSQZRQ-3 | 34B | 11 Sec. | 2 m | 60 / 105 / 205 bar | 13 or 14 kg | 545 mm |
| 4.5 kg | KFCSQZRQ-4.5 | 55B | 11 Sec. | 2 m | 60 / 105 / 205 bar | 18.5 or 13.5 kg | 545 mm |
| Specification | 2 kg | 3 kg | 4.5 kg |
|---|---|---|---|
| Design | Bend pipe and Horn | Bend pipe and Horn | Hose and Horn |
| Diameter (Approx.) | 108±10 mm | 140±10 mm | 140±10 mm |
| Average % Discharge | 98% | 98% | 98% |
| Operating Temperature | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C |
| Empty Weight (Approx.) | 7 or 8 kg | 9.5 or 10.5 kg | 12.5 or 13.5 kg |
| Shipping Weight (Approx.) | 10 or 11 kg | 13.5 or 14.5 kg | 19 or 20 kg |
| Mounting Bracket | Wall bracket | Wall bracket | Wall bracket |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable carbon dioxide extinguisher in the RQ series with a brass wheel type valve that is turned open by hand. Available in 2 kg, 3 kg and 4.5 kg for electrical and flammable liquid risks indoors.
Sizes: 2 kg, 4.5 kg
CO2 extinguisher with a lighter aluminium cylinder in place of manganese steel, offered in 2 kg and 4.5 kg. Easier to carry and stated to have a longer service life.
Sizes: 6.5 kg, 9 kg, 22.5 kg
Trolley mounted CO2 extinguishers in 6.5 kg, 9 kg and 22.5 kg for larger plant rooms and shop floors. Longer discharge and greater reach than portable units.
Sizes: 2 kg, 4.5 kg
Portable CO2 extinguisher in 2 kg and 4.5 kg with a brass valve and a used and ready indicator, BIS approved to IS 15683. The 2 kg size is rated 34B, with a service pressure of 70 bar and a throw of more than 2 m.
Sizes: 6.5 kg, 22.5 kg
Larger CO2 extinguishers in 6.5 kg and 22.5 kg, offered in squeeze grip and wheeled types for Class B, C and electrical risks. Certified to IS 16018 and PED, with BIS and CE marking and a 55B rating listed for the first size.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable carbon dioxide extinguisher with a mild steel cylinder in 2, 3 and 4.5 kg, for Class B and electrically actuated fires. The 2 kg size is rated 21B with a minimum effective discharge time of 8 seconds.
Sizes: 2 kg, 4.5 kg
Portable CO2 extinguisher with an aluminium grade 6061 cylinder designed as per IS 15660:2017, in 2 and 4.5 kg. Minimax states it is up to 30 percent lighter than a seamless steel cylinder, and it resists corrosion in coastal and high salinity areas.
Sizes: 2 kg | 3 kg | 4.5 kg
Portable carbon dioxide extinguisher available in 2 Kg, 3 Kg and 4.5 Kg, made for places where a residue free agent is essential. The CO2 is stored as a liquefied gas under high pressure and discharged through a horn for directional control.
Sizes: 6.5 kg, 9 kg
Mobile CO2 extinguishers on a trolley for indoor electrical fire risks in small to medium industrial setups. The 9 Kg gives a longer discharge duration and range than the 6.5 Kg unit.
