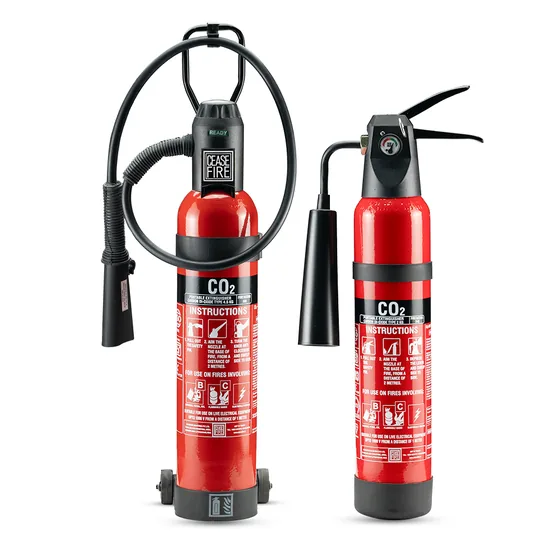

Authorised distributor for CeasefirePortable CO2 extinguisher in 2 kg and 4.5 kg with a brass valve and a used and ready indicator, BIS approved to IS 15683. The 2 kg size is rated 34B, with a service pressure of 70 bar and a throw of more than 2 m.
Standards and approvals: ISO 9001, PED, IS 15683, EN3, PESO, BIS
Sizes: 2 kg, 4.5 kg
| Specification | 2 kg | Fire Ext CO2 2 kg Aluminium squeeze Grip SP Red | Fire Ext CO2 2 kg MS squeeze Grip SP | Fire Ext CO2 4.5 kg MS squeeze Grip with Trolley SP Red | Fire Ext CO2 4.5 kg MS whee L type with Trolley SP Red | Fire Ext CO2 4.5 kg Aluminium squeeze Grip With Trolley SP Red | 4.5 kg |
|---|---|---|---|---|---|---|---|
| Ratings | 34B | 55B | |||||
| Product Code | CF-001108 | CF-001109 | CF-000063 | CF-000064 | CF-000069 | ||
| Capacity of Agent | 2 (Kg) | 2 (Kg) | 4.5 (Kg) | 4.5 (Kg) | 4.5 (Kg) | ||
| Filling tolerance by Mass | 0 to 5 (%) | 0 to 5 (%) | 0 to 5 (%) | 0 to 5 (%) | 0 to 5 (%) | ||
| Agent | CO2 | CO2 | CO2 | CO2 | CO2 | ||
| Certification Standard | ISO 9001, PED, IS 15683, *EN3, PESO | ISO 9001, PED, IS 15683, *EN3, PESO | ISO 9001, PED, IS 15683, *EN3, PESO | ISO 9001, PED, IS 15683, *EN3, PESO | ISO 9001, PED, IS 15683, *EN3, PESO | ||
| Valve Material of Construction (MOC) | Brass | Brass | Brass | Brass | Brass | ||
| Valve Construction | Forging and machining | Forging and machining | Forging and machining | Forging and machining | Forging and machining | ||
| Shell Material of Construction (MOC) | Al / Al Alloy 6061 | 37Mn / 34CRMO4 | 37Mn | 37Mn | Al Alloy 6061 | ||
| Shell Construction | Cold Impact Extrusion | Hot Spinning Process | Hot Spinning Process | Hot Spinning Process | Cold Impact Extrusion | ||
| Min. Wall Thickness | 5.2 (mm) | 3.5 (mm) | 4.2 (mm) | 4.2 (mm) | 5.6 (mm) | ||
| Diameter of Shell (approx.) | 111 (mm) | 104 to 108 (mm) | 139.8 to 140 (mm) | 139.8 to 140 (mm) | 140 (mm) | ||
| Total Height (approx.) | 620 (mm) | 620 (mm) | 768 (mm) | 768 (mm) | 768 (mm) | ||
| Min. Test Pressure | 225 (Bar) | 225 (Bar) | 225 (Bar) | 225 (Bar) | 225 (Bar) | ||
| Anti-Corrosive Treatment External | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | Outer surfaces were EP Powder coated having Min. Thickness 50 Micron Shade 536/538 Of IS-5 | ||
| Type of Indicator | Used & Ready | Used & Ready | Used & Ready | Used & Ready | Used & Ready | ||
| Service Pressure | 70 (Bar) | 70 (Bar) | 70 (Bar) | 70 (Bar) | 70 (Bar) | ||
| Type of Operating Mechanism | Squeeze Grip | Squeeze Grip | Squeeze Grip | Wheel Knob | Squeeze Grip | ||
| MOC and Length of Hose | Bend and Horn Assembly (mm) | Bend and Horn Assembly (mm) | EPDM Rubber Braided Hose Pipe with horn, of Length 1000 mm (mm) | EPDM Rubber Braided Hose Pipe with horn, of Length 1000 mm (mm) | EPDM Rubber Braided Hose Pipe with horn, of Length 1000 mm (mm) | ||
| Minimum Throw Distance (BRD as per IS-15683) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | > 2 (Meter) | ||
| Min. Discharge Time (as per IS-15683) | 8 (Sec.) | 8 (Sec.) | 9 (Sec.) | 9 (Sec.) | 9 (Sec.) | ||
| Applicable to Type of Fire | B, C & Electrical Started Fire | B, C & Electrical Started Fire | B, C & Electrical Started Fire | B, C & Electrical Started Fire | B, C & Electrical Started Fire | ||
| Fire Rating - IS Rating | 34B | 34B | 55B | 55B | 55B | ||
| Fire Rating - EN-3 Rating | 34B | 34B | NA | NA | NA | ||
| Operating Temperature Range | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | From -30 to +60 (°C) | ||
| Extinguisher Label | Screen printed | Screen printed | Screen printed | Screen printed | Screen printed | ||
| Glow in the Dark Fire Extinguisher Locator | No | No | Yes | Yes | Yes | ||
| Green Packaging (Environment Friendly) | Yes | Yes | Yes | Yes | Yes | ||
| Gross Weight** | 4.70 to 5.10 (Kg) | 8.70 to 9.50 (Kg) | 17.30 to 18.20 (Kg) | 17.50 to 18.70 (Kg) | 13.50 to 14.10 (Kg) | ||
| Product Warranty*** | 10 (Year) | 10 (Year) | 10 (Year) | 10 (Year) | 10 (Year) |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 6.5 kg, 22.5 kg
Larger CO2 extinguishers in 6.5 kg and 22.5 kg, offered in squeeze grip and wheeled types for Class B, C and electrical risks. Certified to IS 16018 and PED, with BIS and CE marking and a 55B rating listed for the first size.
Sizes: 2 kg, 5 kg, 20 kg
CO2 extinguisher range built for European approvals in 2 kg, 5 kg and 20 kg, with aluminium and mild steel cylinders and trolley mounted versions in selected models. The 2 kg size is rated 34B.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable carbon dioxide extinguisher in the RQ series with a brass wheel type valve that is turned open by hand. Available in 2 kg, 3 kg and 4.5 kg for electrical and flammable liquid risks indoors.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable CO2 extinguisher in the RQ series with a squeeze type lever valve for fast one hand operation. Supplied in 2 kg, 3 kg and 4.5 kg sizes.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable carbon dioxide extinguisher with a mild steel cylinder in 2, 3 and 4.5 kg, for Class B and electrically actuated fires. The 2 kg size is rated 21B with a minimum effective discharge time of 8 seconds.
Sizes: 2 kg, 4.5 kg
Portable CO2 extinguisher with an aluminium grade 6061 cylinder designed as per IS 15660:2017, in 2 and 4.5 kg. Minimax states it is up to 30 percent lighter than a seamless steel cylinder, and it resists corrosion in coastal and high salinity areas.
Sizes: 2 kg | 3 kg | 4.5 kg
Portable carbon dioxide extinguisher available in 2 Kg, 3 Kg and 4.5 Kg, made for places where a residue free agent is essential. The CO2 is stored as a liquefied gas under high pressure and discharged through a horn for directional control.
Sizes: 6.5 kg, 9 kg
Mobile CO2 extinguishers on a trolley for indoor electrical fire risks in small to medium industrial setups. The 9 Kg gives a longer discharge duration and range than the 6.5 Kg unit.
