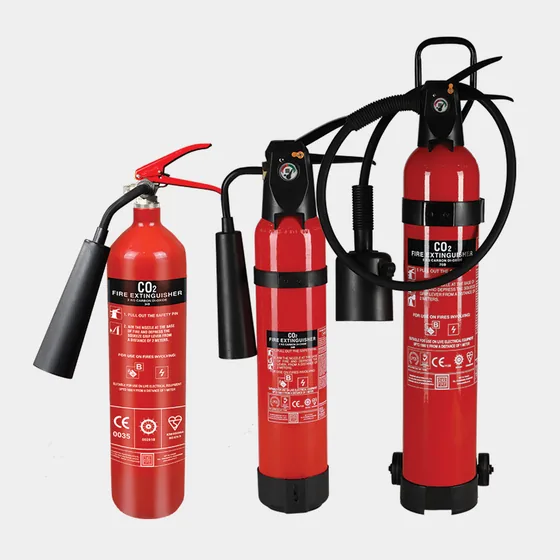

Authorised distributor for CeasefireCO2 extinguisher range built for European approvals in 2 kg, 5 kg and 20 kg, with aluminium and mild steel cylinders and trolley mounted versions in selected models. The 2 kg size is rated 34B.
Standards and approvals: EUROCERT, LPCB, BSI, BRE GLOBAL, PED, EN3, MED, KITEMARK, CE, BSI Kitemark
Sizes: 2 kg, 5 kg, 20 kg
| Specification | 2 kg | CO2 2 kg MS SQUEEZE GRIP SP RED | CO2 5 kg MS SQUEEZE GRIP WITH TROLLEY SP RED | CO2 2 kg MS SQUEEZE GRIP SP RED | CO2 5 kg MS SQUEEZE GRIP SP RED | CO2 2 kg ALUMINIUM SQUEEZE GRIP SP CHROME | CO2 5 kg ALUMINIUM SQUEEZE GRIP WITH TROLLEY SP CHROME | CO2 2 kg ALUMINIUM SQUEEZE GRIP SP RED | CO2 2 kg ALUMINIUM SQUEEZE GRIP SP RED | CO2 5 kg ALUMINIUM SQUEEZE GRIP SP RED | CO2 5 kg ALUMINIUM SQUEEZE GRIP WITH TROLLEY SP RED | 5 kg | 20 kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ratings | 34B | 70B | 113B | ||||||||||
| PRODUCT CODE | CF-000702 | CF-000703 | TI-002393 | TI-002394 | TI-002455 | CF-000985 | CF-000700 | TI-002391 | TI-002392 | CF-000701 | |||
| AGENT | CO2 | CO2 | CO2 | CO2 | CO2 | CO2 | CO2 | CO2 | CO2 | CO2 | |||
| STORED PRESSURE / CARTRIDGE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | STORED PRESSURE | |||
| CERTIFICATION OR VERIFING BODY | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,BSI,BRE GLOBAL | EUROCERT,BSI,BRE GLOBAL | EUROCERT | EUROCERT,LPCB | EUROCERT,LPCB,BSI,BRE GLOBAL | EUROCERT,BSI,BRE GLOBAL | EUROCERT,BSI,BRE GLOBAL | EUROCERT,LPCB,BSI,BRE GLOBAL | |||
| CERTIFICATION TYPE | PED,EN3,MED | PED,EN3,MED | PED,EN3,MED | PED,EN3,MED | PED | PED,EN3 | PED,EN3,MED | PED,EN3,MED | PED,EN3,MED | PED,EN3,MED | |||
| LPCB MARKING | YES | YES | NOT APPLICABLE | NOT APPLICABLE | NOT APPLICABLE | YES | YES | NOT APPLICABLE | NOT APPLICABLE | YES | |||
| KITEMARK MARKING | YES | YES | YES | YES | NOT APPLICABLE | NOT APPLICABLE | YES | YES | YES | YES | |||
| CE MARKING | YES | YES | YES | YES | YES | YES | YES | YES | YES | YES | |||
| WHEEL / MED MARKING | YES | YES | YES | YES | NOT APPLICABLE | NOT APPLICABLE | YES | YES | YES | YES | |||
| THROW | 3 METERS | 4 METERS | 3 METERS | 4 METERS | 3 METERS | 4 METERS | 3 METERS | 3 METERS | 4 METERS | 4 METERS | |||
| GROSS WEIGHT (APPROX) | 9.10 KG | 18.90 KG | 7 KG | 14.5 KG | 6.5 KG | 14.90 KG | 9.10 KG | 5.5 KG | 13.25 KG | 14.9 KG | |||
| NET MASS (APPROX) | 1.90 TO 2.00 KG | 5KG | 1.90 TO 2.00 KG | 5KG | 1.90 TO 2.00 KG | 5KG | 1.90 TO 2.00 KG | 1.90 TO 2.00 KG | 5KG | 5KG | |||
| DISCHARGE MECHANISM | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | SQUEEZE GRIP | |||
| APPLICABLE ON FIRES | B, C & ELECTRICAL STARTED FIRE | B, C & ELECTRICAL STARTED FIRE | B, C & ELECTRICAL STARTED FIRE | B, C & ELECTRICAL STARTED FIRE | B & ELECTRICAL STARTED FIRE. | B, C & ELECTRICAL STARTED FIRE | B, C & ELECTRICAL STARTED FIRE | B, C & ELECTRICAL STARTED FIRE | B, C & ELECTRICAL STARTED FIRE | B, C & ELECTRICAL STARTED FIRE | |||
| FIRE RATINGS | 34B | 70B | 89B | 34B | 55B | 70B | 34B | 55B | 89B | 70B | |||
| EXTERNAL COATING | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | CHROME FINISH | CHROME FINISH | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | EPOXY POLYESTER POWDER | |||
| WARRANTY IN YEAR | 5 | 5 | 5 | 5 | 5 | 5 | |||||||
| WORKING PRESSURE | 70 BAR | 70 BAR | 62 BAR | 70 BAR | 62 BAR | 70 BAR | 70 BAR | 62 BAR | 67 BAR | 70 BAR | |||
| HYDROSTATIC TEST PRESSURE | 250 BAR | 250 BAR | 250 BAR | 250 BAR | 250 BAR | 250 BAR | 250 BAR | 250 BAR | 250 BAR | 250 BAR | |||
| DIA. OF SHELL (OD) | 108 MM /104 MM | 136MM/140 MM | 108 MM /104 MM | 136MM/140 MM | 111 MM | 140 MM/152MM/152MM | 111 MM | 111 MM | 140 MM/152MM/152MM | 140 MM/152MM/152MM | |||
| HEIGHT OF FIRE EXT. (APPROX) | 610 MM | 825 MM | 610 MM | 825 MM | 605 MM | 825 MM | |||||||
| BODY THICKNESS (APPROX) | 3.5 MM | 3 MM | 2 TO 3.5 MM | 2.6 TO 3 MM | 5.6 TO 6 MM | 7.3 MM | 5.92 MM | 5.6 TO 6 MM | 5.6 TO 8.7 MM | 7.3 MM MIN | |||
| CYLINDER MATERIAL SPEC. | 37MN / 34CRMO4 | 37MN/37CRMO4 | 37MN / 34CRMO4 | 37MN/37CRMO4 | AL / AL /ALLOY 6061 | AL / ALLOY 6061/AL | AL / AL /ALLOY 6061 | AL / AL /ALLOY 6061 | AL / ALLOY 6061/AL | AL / ALLOY 6061/AL | |||
| OPERATING TEMPERATURE | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | -30OC TO +60OC | |||
| PRESSURE RELIEF VALVE | BURST DISK | BURST DISK | BURST DISK | BURST DISK | BURST DISK | BURST DISK | BURST DISK | BURST DISK | BURST DISK | BURST DISK | |||
| EXPORT WARRANTY IN YEAR | 5 | 5 | 5 | 5 | |||||||||
| APPROX. HEIGHT OF FIRE EXT. | 605 MM | 605 MM | 825 MM | 825 MM |
Specifications as published by Ceasefire. Please confirm the exact model with us before ordering.
Sizes: 2 kg, 4.5 kg
Portable CO2 extinguisher in 2 kg and 4.5 kg with a brass valve and a used and ready indicator, BIS approved to IS 15683. The 2 kg size is rated 34B, with a service pressure of 70 bar and a throw of more than 2 m.
Sizes: 6.5 kg, 22.5 kg
Larger CO2 extinguishers in 6.5 kg and 22.5 kg, offered in squeeze grip and wheeled types for Class B, C and electrical risks. Certified to IS 16018 and PED, with BIS and CE marking and a 55B rating listed for the first size.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable carbon dioxide extinguisher in the RQ series with a brass wheel type valve that is turned open by hand. Available in 2 kg, 3 kg and 4.5 kg for electrical and flammable liquid risks indoors.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable CO2 extinguisher in the RQ series with a squeeze type lever valve for fast one hand operation. Supplied in 2 kg, 3 kg and 4.5 kg sizes.
Sizes: 2 kg, 3 kg, 4.5 kg
Portable carbon dioxide extinguisher with a mild steel cylinder in 2, 3 and 4.5 kg, for Class B and electrically actuated fires. The 2 kg size is rated 21B with a minimum effective discharge time of 8 seconds.
Sizes: 2 kg, 4.5 kg
Portable CO2 extinguisher with an aluminium grade 6061 cylinder designed as per IS 15660:2017, in 2 and 4.5 kg. Minimax states it is up to 30 percent lighter than a seamless steel cylinder, and it resists corrosion in coastal and high salinity areas.
Sizes: 2 kg | 3 kg | 4.5 kg
Portable carbon dioxide extinguisher available in 2 Kg, 3 Kg and 4.5 Kg, made for places where a residue free agent is essential. The CO2 is stored as a liquefied gas under high pressure and discharged through a horn for directional control.
Sizes: 6.5 kg, 9 kg
Mobile CO2 extinguishers on a trolley for indoor electrical fire risks in small to medium industrial setups. The 9 Kg gives a longer discharge duration and range than the 6.5 Kg unit.
