Kanex CO2 Fire Extinguisher, Stored Pressure Squeeze Type Valve (RQ series)
Sizes: 2 kg, 3 kg, 4.5 kg
Portable CO2 extinguisher in the RQ series with a squeeze type lever valve for fast one hand operation. Supplied in 2 kg, 3 kg and 4.5 kg sizes.

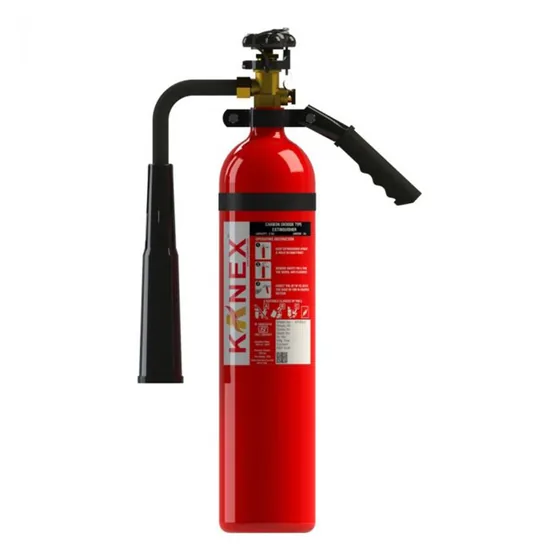

Authorised distributor for KanexKanex CO2 Fire Extinguisher, Stored Pressure Wheel Type Valve (RQ series)
Portable carbon dioxide extinguisher in the RQ series with a brass wheel type valve that is turned open by hand. Available in 2 kg, 3 kg and 4.5 kg for electrical and flammable liquid risks indoors.
- Charged with 99.95% pure carbon dioxide gas, leaves no residue
- Brass wheel type valve with pressure relief discs
- Bend pipe and horn design; high pressure wire braided hose
- Fire rating 21B, about 9 seconds discharge and 2 m throw on the 2 kg size
- Shells hydro tested to 250 bar; bodies CCOE/PESO approved
- Works from -30 C to +60 C; no electrical conductivity back to the operator
Standards and approvals: IS 2878:2004, BIS, CE, CCOE/PESO
Sizes: 2 kg, 3 kg, 4.5 kg
Specifications
| Size | Model | Fire rating | Discharge time | Throw range | Pressure (service / max / test) | Full weight | Height |
|---|---|---|---|---|---|---|---|
| 2 kg | KFCRQ-2 | 21B | 9 Sec. | 2 m | 60 / 105 / 205 bar | 9.5 or 10.5 kg | 580 mm |
| 3 kg | KFCRQ-3 | 34B | 11 Sec. | 2 m | 60 / 105 / 205 bar | 13 or 14 kg | 545 mm |
| 4.5 kg | KFCRQ-4.5 | 55B | 11 Sec. | 2 m | 60 / 105 / 205 bar | 18.5 or 13.5 kg | 545 mm |
All specifications
| Specification | 2 kg | 3 kg | 4.5 kg |
|---|---|---|---|
| Design | Bend pipe and Horn | Bend pipe and Horn | Hose and Horn |
| Diameter (Approx.) | 108±10 mm | 140±10 mm | 140±10 mm |
| Average Discharge | 98% | 98% | 98% |
| Operating Temperature | -30 °C to +60 °C | -30 °C to +60 °C | -30 °C to +60 °C |
| Empty Weight (Approx.) | 7 or 8 kg | 9.5 or 10.5 kg | 12.5 or 13.5 kg |
| Shipping Weight (Approx.) | 10 or 11 kg | 13.5 or 14.5 kg | 19 or 20 kg |
| Mounting Bracket | Wall bracket | Wall bracket | Wall bracket |
Specifications as published by Kanex. Please confirm the exact model with us before ordering.
More Kanex CO2 Fire Extinguishers
Kanex CO2 Fire Extinguisher, Aluminium Body Stored Pressure (HQ series)
Sizes: 2 kg, 4.5 kg
CO2 extinguisher with a lighter aluminium cylinder in place of manganese steel, offered in 2 kg and 4.5 kg. Easier to carry and stated to have a longer service life.
Kanex CO2 Mobile Trolley Fire Extinguisher (6.5 kg to 22.5 kg)
Sizes: 6.5 kg, 9 kg, 22.5 kg
Trolley mounted CO2 extinguishers in 6.5 kg, 9 kg and 22.5 kg for larger plant rooms and shop floors. Longer discharge and greater reach than portable units.
CO2 Fire Extinguishers from other brands
Ceasefire
Ceasefire CO2 Fire Extinguisher, Portable Stored Pressure (BIS)
Sizes: 2 kg, 4.5 kg
Portable CO2 extinguisher in 2 kg and 4.5 kg with a brass valve and a used and ready indicator, BIS approved to IS 15683. The 2 kg size is rated 34B, with a service pressure of 70 bar and a throw of more than 2 m.
Ceasefire
Ceasefire CO2 Fire Extinguisher, 6.5 kg and 22.5 kg, Squeeze Grip and Wheeled (BIS)
Sizes: 6.5 kg, 22.5 kg
Larger CO2 extinguishers in 6.5 kg and 22.5 kg, offered in squeeze grip and wheeled types for Class B, C and electrical risks. Certified to IS 16018 and PED, with BIS and CE marking and a 55B rating listed for the first size.
Minimax
Minimax CO2 Fire Extinguisher, Mild Steel Body
Sizes: 2 kg, 3 kg, 4.5 kg
Portable carbon dioxide extinguisher with a mild steel cylinder in 2, 3 and 4.5 kg, for Class B and electrically actuated fires. The 2 kg size is rated 21B with a minimum effective discharge time of 8 seconds.
Minimax
Minimax CO2 Fire Extinguisher, Aluminium Body
Sizes: 2 kg, 4.5 kg
Portable CO2 extinguisher with an aluminium grade 6061 cylinder designed as per IS 15660:2017, in 2 and 4.5 kg. Minimax states it is up to 30 percent lighter than a seamless steel cylinder, and it resists corrosion in coastal and high salinity areas.
Savemax
Savemax CO2 Portable Fire Extinguisher, High Pressure, 2 to 4.5 Kg
Sizes: 2 kg | 3 kg | 4.5 kg
Portable carbon dioxide extinguisher available in 2 Kg, 3 Kg and 4.5 Kg, made for places where a residue free agent is essential. The CO2 is stored as a liquefied gas under high pressure and discharged through a horn for directional control.
Savemax
Savemax CO2 Trolley Type Fire Extinguisher, 6.5 Kg and 9 Kg
Sizes: 6.5 kg, 9 kg
Mobile CO2 extinguishers on a trolley for indoor electrical fire risks in small to medium industrial setups. The 9 Kg gives a longer discharge duration and range than the 6.5 Kg unit.
