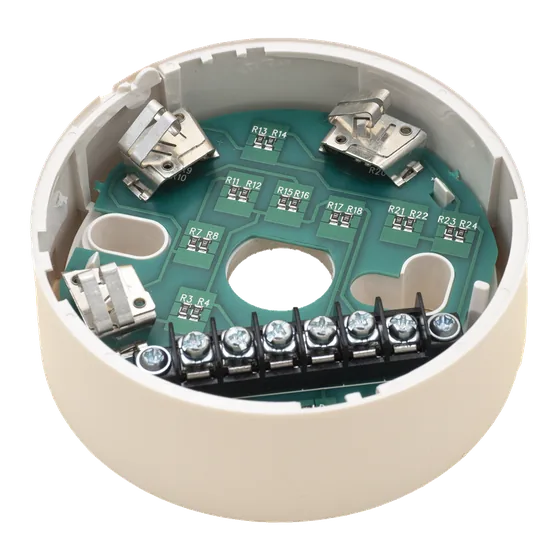

System Sensor B524HTR Analogue Heater Base
A two-wire heated base for System Sensor 200 analogue addressable detectors, used where frost or condensation could otherwise cause false alarms.
- Raises the sensor temperature by a few degrees to resist condensation
- 2.6 watts of heating power at 28VDC; AC supply can also be used, up to 4 watts
- Terminals accept 2.5 mm2 cable
- Total depth 36 mm, weight 92g
- Operating temperature -30 to +60°C, humidity 10 to 93% non-condensing
- Compatible with all S200 addressable sensors
Specifications
Specifications
| Specification | B524HTR |
|---|---|
| Max Power to Heating Elements | 4W |
| Equivalent Heating Resister Value | 300 Ohm |
| Operating Temperature Range | -30OC to +60OC |
| Operating Humidity | 10% to 93% Relative Humidity (non-condensing) |
| Height | 36mm |
| Diameter | 103mm |
| Weight | 92g |
| Wire Gauge for Terminals | 0.5mm2 to 2.5mm2 |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
