Apollo Soteria Dimension Mounting Box
A white flame-retardant polycarbonate mounting box for flush fitting Soteria Dimension detectors into a ceiling opening. It is held in place by self-aligning fixing tabs.

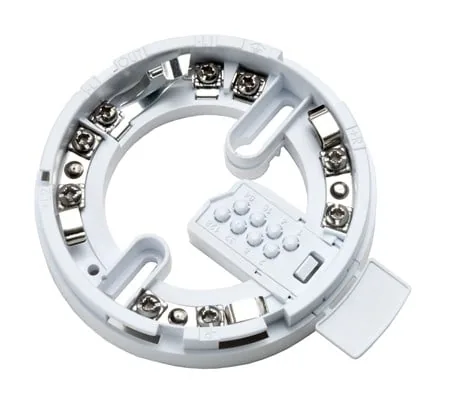

Authorised distributor for ApolloApollo XPERT 8 Base (Soteria, Discovery and XP95)
A universal detector base that fits all Apollo detectors in the Soteria, Discovery and XP95 ranges. It supports isolated and non-isolated devices and has a wide interior for easy access to cables and terminals.
- Fits Soteria, Discovery and XP95 detectors
- E-Z Fit lets the base be mounted simply after wiring
- Supports isolated and non-isolated devices
- Isolated wiper keeps the loop connected while a device is removed for a short time
- Wide interior diameter for access to cables and terminals
- White polycarbonate, 10 year warranty
Specifications
Specifications
| Specification | SA5000-200APO |
|---|---|
| Warranty | 10 year |
| Colour | White |
| Finish | Gloss |
| Materials housing | Polycarbonate |
| Product depth | 20mm | 0.79in |
| Product diameter | 100mm | 3.94in |
| Terminal functions L2 | +L2, Loop in & out positive |
| Terminal functions L1 in | -L1 in, Loop (isolated) negative |
| Terminal functions L2 out | -L1 out, Loop (isolated) negative |
| Terminal functions +R | +R, Remote indicator positive connection |
| Terminal functions -R | -R, Remote indicator negative connection |
| Polarity | L1 &, L2 are polarity sensitive |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
