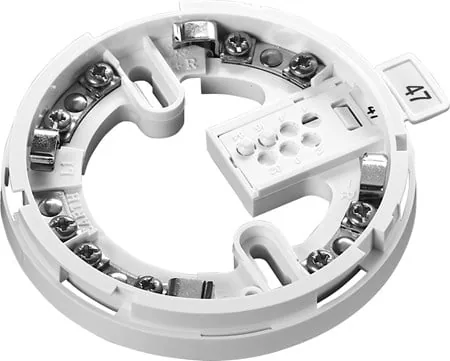

Authorised distributor for ApolloA low insertion force detector base with stainless steel contacts for quick installation, suited to the XP95 and Discovery detector ranges. It is available in white and in black.
| Specification | 45681-210APO | 45681-361APO |
|---|---|---|
| Warranty | 10 year | 10 year |
| Colour | White | Black |
| Materials housing | Polycarbonate | Polycarbonate |
| Product depth | 16mm | 0.63in | 16mm | 0.63in |
| Product diameter | 100mm | 3.94in | 100mm | 3.94in |
| Weight | 52g | 52g |
| Terminal functions L1 in | -L1 in Loop in & out, double terminal | -L1 in Loop in & out, double terminal |
| Polarity | L1 &, L2 are polarity insensitive | L1 &, L2 are polarity insensitive |
Specifications as published by Apollo. Please confirm the exact model with us before ordering.
A universal detector base that fits all Apollo detectors in the Soteria, Discovery and XP95 ranges. It supports isolated and non-isolated devices and has a wide interior for easy access to cables and terminals.
A white flame-retardant polycarbonate mounting box for flush fitting Soteria Dimension detectors into a ceiling opening. It is held in place by self-aligning fixing tabs.
An XPERT 7 base with a built-in isolator that senses short circuit faults on Discovery loops and spurs and keeps the disruption they cause to a minimum.
A dedicated white polycarbonate base designed to accept only the Apollo Isolator 55000-720.
An XPERT 7 base for intrinsically safe systems that accepts only I.S. products, so a standard detector cannot be fitted by mistake.
The standard base for Series 65 conventional detectors, designed so detectors fit without force, which helps on suspended ceilings. Detectors fit one way only and can be locked with a grub screw using a 1.5 mm hexagonal screwdriver.
A 4 inch standard European flangeless mounting base for a plain detector position, UL/ULC listed.
A sounder base that takes the same address as its detector but uses its own device type on the loop, and recognises the System Sensor synchronisation protocol.
The plug-in base for Morley Advanced intelligent sensor ranges, in the ivory version. The standard MI-B501AP is white and the BK version is black.
The standard base for System Sensor 500, 200, 200+ and 200 Advanced intelligent sensors, with a tamper-resistant option and a break-off address tag.
A two-wire heated base for System Sensor 200 analogue addressable detectors, used where frost or condensation could otherwise cause false alarms.
Mounting base for all Intelli-Sense detectors, 110 mm across and 16 mm deep, with device locking and remote indicator connections.
