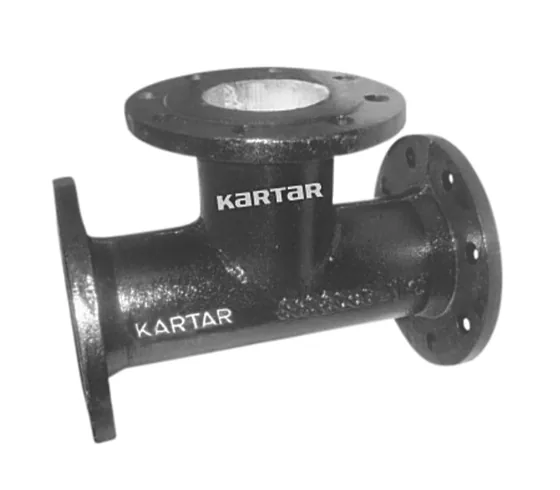

Authorised distributor for Kartar ValvesKartar Valves DI All Flange Tee
A ductile iron all flange (A/F) tee for flanged pipework, ISI marked to IS 9523, in sizes from 80 x 80 x 50 to 200 x 200 x 200.
- Flanged ends on all three branches
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 80 to 200 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | A/F Tee |
| Sizes | 80x80x50, 80x80x80, 100x100x50, 100x100x80, 100x100x100, 125x125x50, 150x150x50, 150x150x80, 150x150x100, 150x150x150, 200x200x50, 200x200x80, 200x200x100, 200x200x150, 200x200x200 |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
