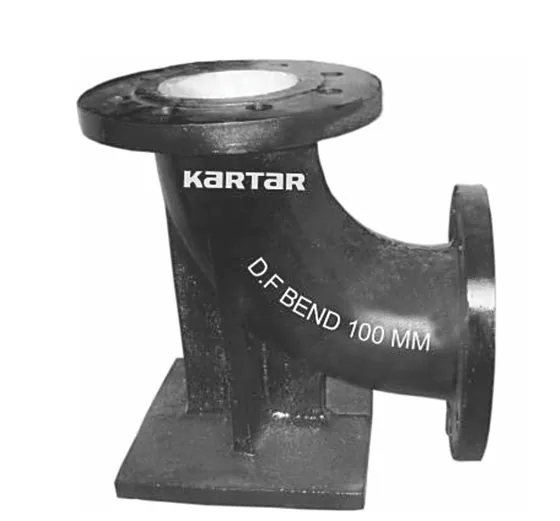

Authorised distributor for Kartar ValvesKartar Valves DI Duckfoot Bend with Flange
A flanged ductile iron duck foot bend, a bend with a foot that supports a vertical pipe at its base, ISI marked to IS 9523, in 80 mm to 200 mm.
- Flanged bend with a supporting foot
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 80 to 200 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | Duck Foot Bend |
| Sizes | 80mm, 100mm, 150mm, 200mm |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
