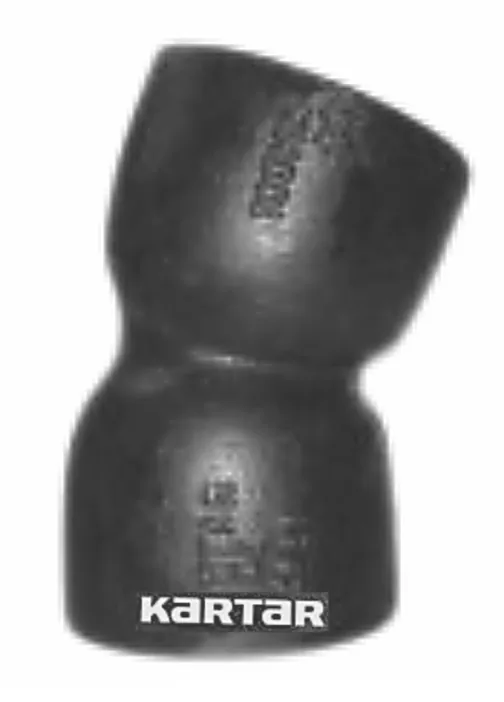

Authorised distributor for Kartar ValvesKartar Valves DI Socket Bend, 22.5 and 11.25 Degree
Ductile iron double socket (D/S) bends for gentle changes of direction, at 22.5 or 11.25 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 450 mm.
- Double socket (D/S) ends, 22.5 or 11.25 degree turn
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 80 to 450 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Item | D/S Bend 22 1/2° | D/S Bend 11 1/4° |
| Sizes | 80mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm | 80mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm |
| Tested | 25kg/cm² Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
