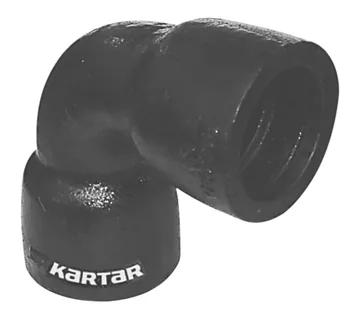

Kartar Valves DI Socket Bend, 90 Degree
Ductile iron double socket (D/S) bend that turns a main through 90 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 500 mm.
DI Pipe Fittings in Bhopal
Ductile iron (DI) fittings join, turn, branch and close the DI pipes used for buried water and fire hydrant mains. Fire Protection System supplies Kartar Valves DI bends, tees, reducers, flanged pieces, collars, caps, mechanical joints and Tyton rings in Bhopal and across Madhya Pradesh, with sizes confirmed on enquiry.
Kartar Valves

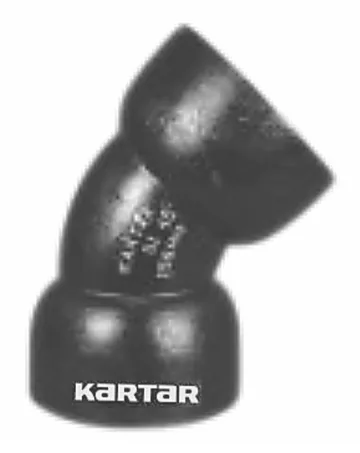

Kartar Valves DI Socket Bend, 45 Degree
Ductile iron double socket (D/S) bend that turns a main through 45 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 450 mm.
Kartar Valves

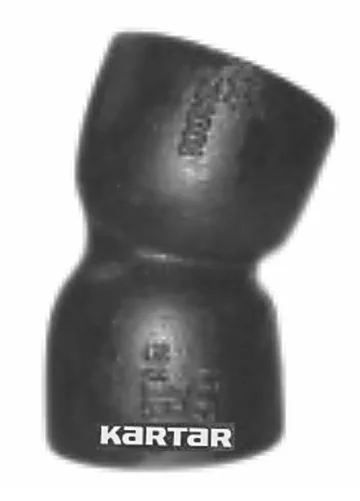

Kartar Valves DI Socket Bend, 22.5 and 11.25 Degree
Ductile iron double socket (D/S) bends for gentle changes of direction, at 22.5 or 11.25 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 450 mm.
Kartar Valves

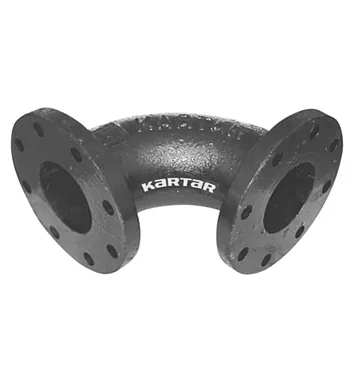

Kartar Valves DI Flanged Bend, 90 Degree
Ductile iron double flanged (D/F) bend that turns a line through 90 degrees, typically at pumps and valves, ISI marked to IS 9523, in 80 mm to 300 mm.
Kartar Valves

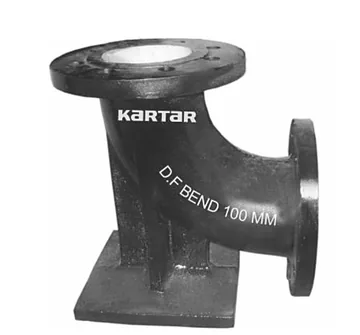

Kartar Valves DI Duckfoot Bend with Flange
A flanged ductile iron duck foot bend, a bend with a foot that supports a vertical pipe at its base, ISI marked to IS 9523, in 80 mm to 200 mm.
Kartar Valves

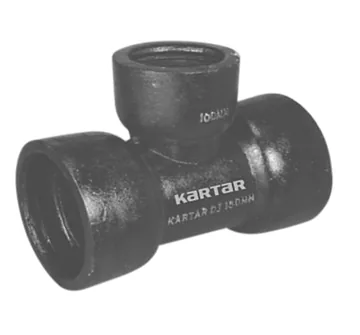

Kartar Valves DI All Socket Tee
A ductile iron all socket (A/S) tee for taking a branch off a socket jointed main, ISI marked to IS 9523, in sizes from 80 x 80 x 80 to 450 x 450 x 450.
Kartar Valves

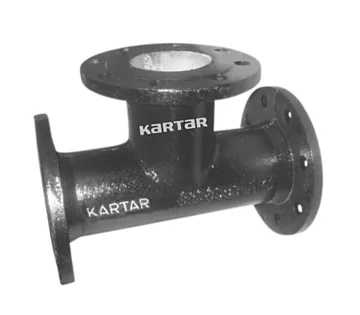

Kartar Valves DI All Flange Tee
A ductile iron all flange (A/F) tee for flanged pipework, ISI marked to IS 9523, in sizes from 80 x 80 x 50 to 200 x 200 x 200.
Kartar Valves

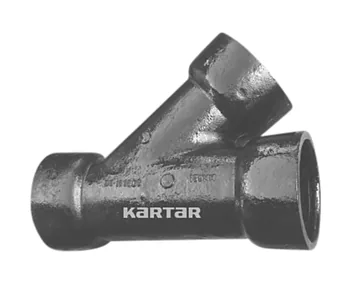

Kartar Valves DI All Socket Y Tee
A ductile iron Y tee with socket ends for an angled branch, ISI marked to IS 9523, in 100 x 100 x 100, 150 x 150 x 100 and 150 x 150 x 150.
Kartar Valves

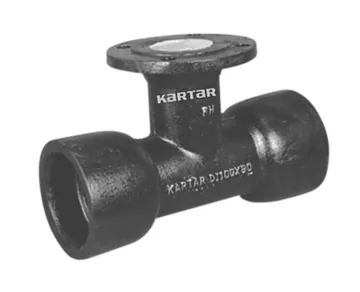

Kartar Valves DI Tee with Flanged Branch (Fire Hydrant and Air Valve Tee)
A ductile iron tee with a flanged branch for fire hydrants and air valves (F.H. / air valve tee), ISI marked to IS 9523, with 40, 50, 80 or 100 mm branches on mains from 80 x 80 to 450 x 450.
Kartar Valves

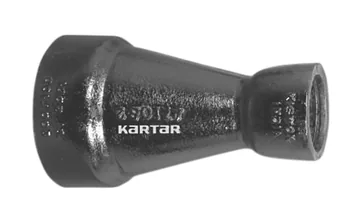

Kartar Valves DI Socket Taper (Reducer)
A ductile iron double socket (D/S) taper that joins pipes of two different sizes, ISI marked to IS 9523, listed from 100 x 100 x 80 to 450 x 450 x 400.
Kartar Valves

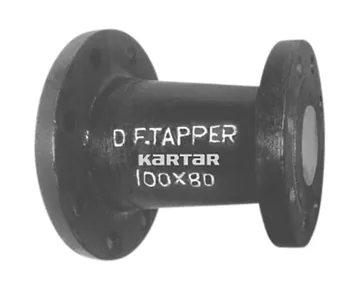

Kartar Valves DI Flange Taper (Reducer)
A ductile iron double flanged (D/F) taper that connects flanged lines of two different sizes, ISI marked to IS 9523, listed from 100 x 100 x 80 to 300 x 300 x 250.
Kartar Valves

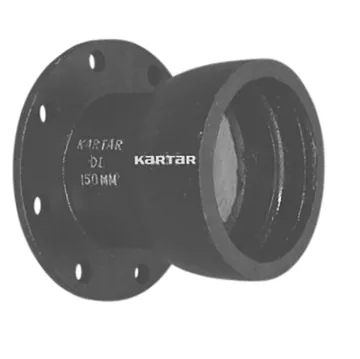

Kartar Valves DI Flange Socket
A ductile iron piece with a flange at one end and a socket at the other, for connecting a flanged item to a plain pipe end, ISI marked to IS 9523, in 80 mm to 600 mm.
Kartar Valves

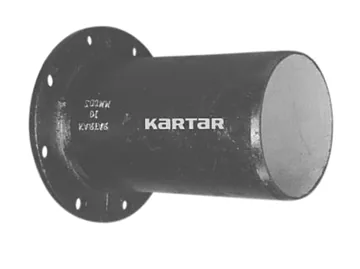

Kartar Valves DI Flange Spigot
A ductile iron piece with a flange at one end and a plain spigot at the other, which fits into a socket joint, ISI marked to IS 9523, in 80 mm to 600 mm.
Kartar Valves

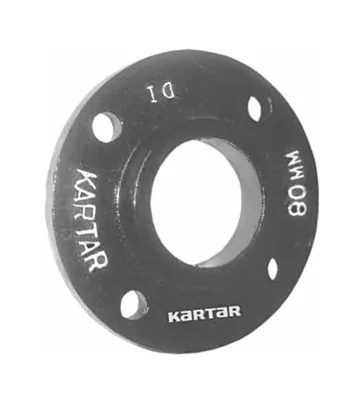

Kartar Valves DI Flange
A ductile iron flange in PN 1.0, drilled to IS 1538 as standard, in 50 mm to 1200 mm. Kartar's flange OD table also covers IS 9523, Tables D, E, F and H and Class 150.
Kartar Valves

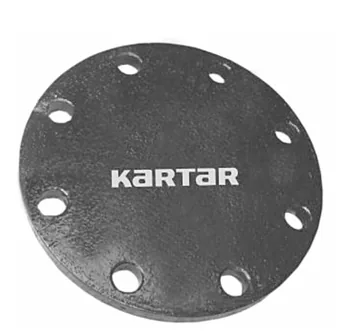

Kartar Valves DI Blank Flange
A ductile iron blank flange (listed on the website as DI Black Flange) that closes a flanged end, ISI marked to IS 9523, in 80 mm to 600 mm.
Kartar Valves

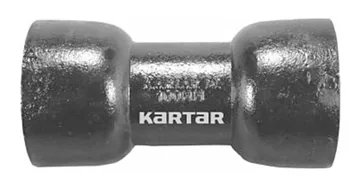

Kartar Valves DI Collar
A ductile iron collar, a sleeve that joins two plain pipe ends and is also used in pipe repairs, ISI marked to IS 9523, in 100 mm to 300 mm.
Kartar Valves

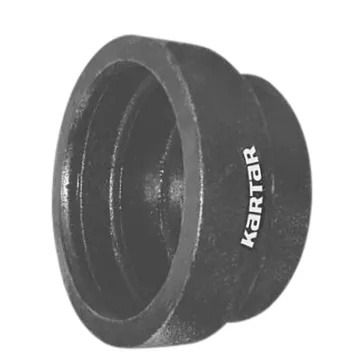

Kartar Valves DI End Cap
A ductile iron cap that closes the end of a pipe, ISI marked to IS 9523, in 80 mm to 450 mm.
Kartar Valves

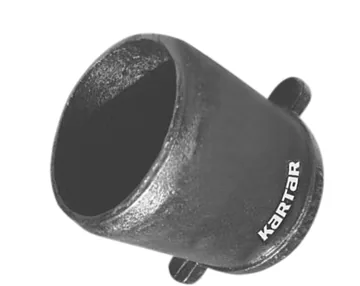

Kartar Valves DI Plug
A ductile iron end plug that closes off a socket end, ISI marked to IS 9523, in 80 mm to 450 mm.
Kartar Valves

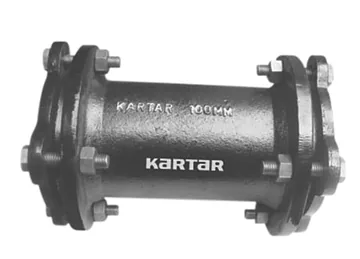

Kartar Valves DI Mechanical Joint (M/J Collar)
A ductile iron mechanical joint collar (M/J collar), in which a gland and bolts press a rubber gasket around the pipe to seal it, ISI marked to IS 9523, in 80 mm to 600 mm.
Kartar Valves

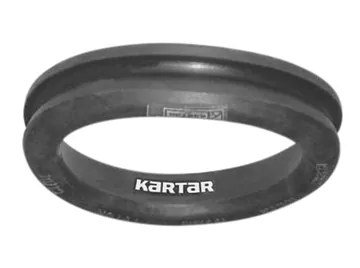

Kartar Valves Tyton Rings
Rubber gasket rings that seal push on socket joints in ductile iron pipes and fittings. Sizes are confirmed on enquiry.
Kartar Valves
Kartar Valves Rubber Gasket, Natural or EPDM
Rubber gaskets for ductile iron socket joints, in natural rubber or EPDM, for 80 mm to 600 mm.
- Item: Rubber Gasket
- Material: Natural / EPDM
- Sizes: 80mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm
How to choose
Start with the joint type on your pipes. Socket fittings take the plain spigot end of a DI pipe and seal with a Tyton ring, the rubber gasket of a push on joint, and are the usual choice on buried mains. Flanged fittings bolt together and suit exposed pipework at pumps and valves, where parts may need to be taken out. Kartar Valves offers bends, tees and reducers in socket and flanged forms, plus flange socket and flange spigot pieces to change from one joint type to the other.
Then pick the fittings for the route. Socket bends come at 90, 45, 22.5 and 11.25 degrees, the smaller angles giving gentle changes of direction, and a 90 degree flanged bend is available for pump and valve connections. A duckfoot bend has a foot that supports a vertical pipe at its base, for example at the foot of a riser or hydrant stand post. For branches, choose an all socket tee, an all flange tee, an all socket Y tee for an angled branch, or a tee with a flanged branch so a valve can be bolted straight onto the branch.
To join two plain pipe ends or repair a damaged pipe, use a DI collar or a mechanical joint, in which a gland and bolts press a rubber gasket around the pipe. End caps close a pipe end and plugs close a socket end, for example at the dead end of a main that will be extended later. Loose DI flanges are available for making bolted joints.
Kartar Valves publishes names and photos for these fittings, so FPS confirms size, pressure class and flange drilling with the maker to match your pipe before quoting. FPS supplies and installs DI fittings for hydrant ring mains and water lines across Madhya Pradesh.
Frequently asked questions
What is the difference between socket and flanged DI fittings?
Socket fittings take the spigot end of a pipe and seal with a rubber Tyton ring, and are mostly used on buried mains. Flanged fittings are bolted together and are used where pipework is exposed or must be taken apart, such as at pumps and valves.
What is a Tyton ring?
A Tyton ring is the rubber gasket that seals a push on socket joint in ductile iron pipes and fittings. Kartar Valves supplies them, with sizes confirmed on enquiry.
What is a duckfoot bend used for?
A duckfoot bend has a foot that supports a vertical pipe at its base, so it is used where a buried main turns upward, for example into a riser or hydrant stand post. Kartar Valves offers it with flanged ends.
How do I connect a flanged valve to a socket jointed main?
Use a flange socket or flange spigot piece to change from a flanged joint to a socket joint, or a tee with a flanged branch where the valve sits on a branch. FPS can work out the fittings needed from your layout.
Which sizes of DI fittings are available?
Kartar Valves publishes names and photos for its DI fittings, so sizes, pressure class and flange drilling are confirmed on enquiry. Share your pipe size and layout and FPS will confirm the details with the maker.
Does FPS supply and install DI fittings, and how do I get a price?
FPS supplies and installs DI pipe fittings in Bhopal and across MP. Prices depend on size and quantity and are shared on request: call or WhatsApp +91 92440 89060.
