Kartar Valves DI Socket Bend, 90 Degree
Ductile iron double socket (D/S) bend that turns a main through 90 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 500 mm.

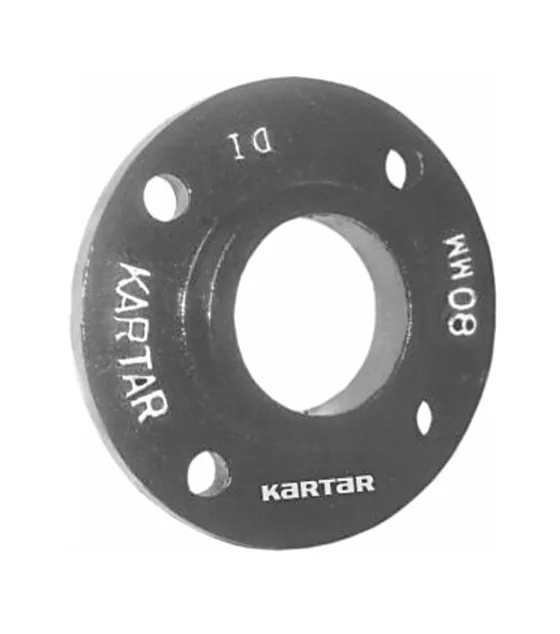

Authorised distributor for Kartar ValvesKartar Valves DI Flange
A ductile iron flange in PN 1.0, drilled to IS 1538 as standard, in 50 mm to 1200 mm. Kartar's flange OD table also covers IS 9523, Tables D, E, F and H and Class 150.
- Ductile iron flange
- PN 1.0, drilled to IS 1538 as standard
- Flange OD table: IS 1538, IS 14846, IS 9523, Tables D to H, Class 150
- Sizes 50 to 1200 mm
Standards and approvals: IS:1538
Specifications
Specifications
| Specification | Details | Details |
|---|---|---|
| Item | Flanges (PN 1.0) | |
| Sizes | 50mm, 65mm, 80mm, 100mm, 125mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm, 700mm, 750mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm | |
| Note | Our standard flanges are as per IS:1538. | |
| Table | Flange Outer Diameters (OD) as per different standards (All dimensions in mm) | |
| OD, IS:1538 & IS:14846 | 50mm: 165, 65mm: 185, 80mm: 200, 100mm: 220, 125mm: 250, 150mm: 285, 200mm: 340, 250mm: 395, 300mm: 445, 350mm: 505, 400mm: 565, 450mm: 615, 500mm: 670, 600mm: 780 | |
| OD, IS : 9523 PN 1.0 | 50mm: NA, 65mm: NA, 80mm: 200, 100mm: 220, 125mm: 250, 150mm: 285, 200mm: 340, 250mm: 395, 300mm: 445, 350mm: 505, 400mm: 565, 450mm: 615, 500mm: 670, 600mm: 780 | |
| OD, IS : 9523 PN 1.6 | 50mm: NA, 65mm: NA, 80mm: 200, 100mm: 220, 125mm: 250, 150mm: 285, 200mm: 340, 250mm: 400, 300mm: 455, 350mm: 520, 400mm: 580, 450mm: 640, 500mm: 715, 600mm: 840 | |
| OD, TABLE D | 50mm: 152, 65mm: 165, 80mm: 184, 100mm: 216, 125mm: 254, 150mm: 279, 200mm: 337, 250mm: 406, 300mm: 457, 350mm: 527, 400mm: 578, 450mm: 641, 500mm: 705, 600mm: 826 | |
| OD, TABLE E | 50mm: 152, 65mm: 165, 80mm: 184, 100mm: 216, 125mm: 254, 150mm: 279, 200mm: 337, 250mm: 406, 300mm: 457, 350mm: 527, 400mm: 578, 450mm: 641, 500mm: 705, 600mm: 826 | |
| OD, TABLE F | 50mm: 165, 65mm: 184, 80mm: 203, 100mm: 229, 125mm: 279, 150mm: 305, 200mm: 368, 250mm: 432, 300mm: 489, 350mm: 552, 400mm: 610, 450mm: 673, 500mm: 737, 600mm: 851 | |
| OD, TABLE H | 50mm: 165, 65mm: 184, 80mm: 203, 100mm: 229, 125mm: 279, 150mm: 305, 200mm: 368, 250mm: 432, 300mm: 489, 350mm: 552, 400mm: 610, 450mm: 673, 500mm: 737, 600mm: 851 | |
| OD, CL 150 | 50mm: 150, 65mm: 180, 80mm: 190, 100mm: 230, 125mm: 255, 150mm: 280, 200mm: 345, 250mm: 405, 300mm: 485, 350mm: 535, 400mm: 595, 450mm: 635, 500mm: 700, 600mm: 815 |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
