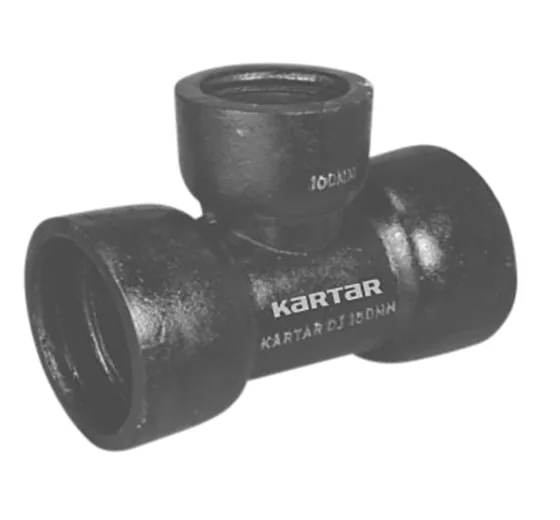

Authorised distributor for Kartar ValvesKartar Valves DI All Socket Tee
A ductile iron all socket (A/S) tee for taking a branch off a socket jointed main, ISI marked to IS 9523, in sizes from 80 x 80 x 80 to 450 x 450 x 450.
- Socket ends on all three branches
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 80 to 450 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | A/S Tee |
| Sizes | 80x80x80, 100x100x80, 100x100x100, 150x150x80, 150x150x100, 150x150x150, 200x200x80, 200x200x100, 200x200x150, 200x200x200, 250x250x80, 250x250x100, 250x250x150, 250x250x200, 250x250x250, 300x300x100, 300x300x150, 300x300x200, 300x300x250, 300x300x300, 350x350x300, 350x350x350, 400x400x300, 400x400x400, 450x450x250, 450x450x300, 450x450x450 |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
