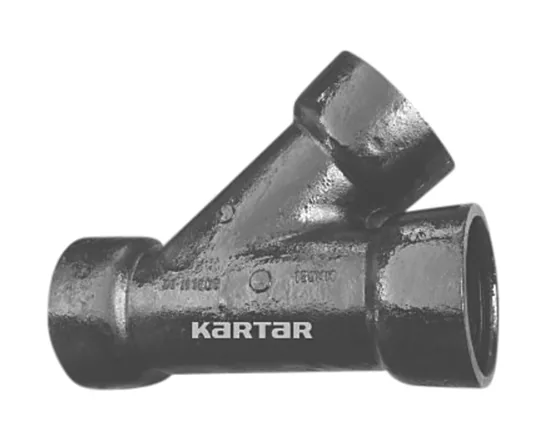

Authorised distributor for Kartar ValvesKartar Valves DI All Socket Y Tee
A ductile iron Y tee with socket ends for an angled branch, ISI marked to IS 9523, in 100 x 100 x 100, 150 x 150 x 100 and 150 x 150 x 150.
- Y shaped tee with socket ends
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 100 and 150 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | Y Tee |
| Sizes | 100x100x100, 150x150x100, 150x150x150 |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
