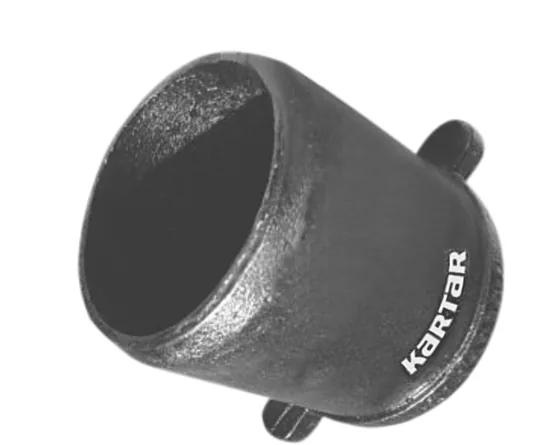

Authorised distributor for Kartar ValvesKartar Valves DI Plug
A ductile iron end plug that closes off a socket end, ISI marked to IS 9523, in 80 mm to 450 mm.
- Closes off a socket end
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 80 to 450 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | End Plug |
| Sizes | 80mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
