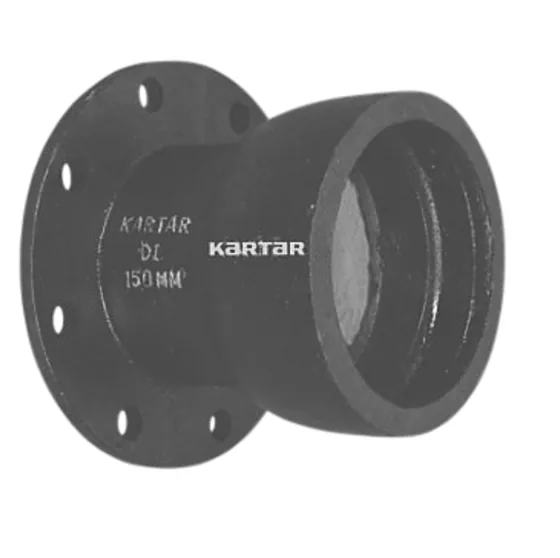

Authorised distributor for Kartar ValvesKartar Valves DI Flange Socket
A ductile iron piece with a flange at one end and a socket at the other, for connecting a flanged item to a plain pipe end, ISI marked to IS 9523, in 80 mm to 600 mm.
- Flange at one end, socket at the other
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 80 to 600 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | Flange Socket |
| Sizes | 80mm, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
