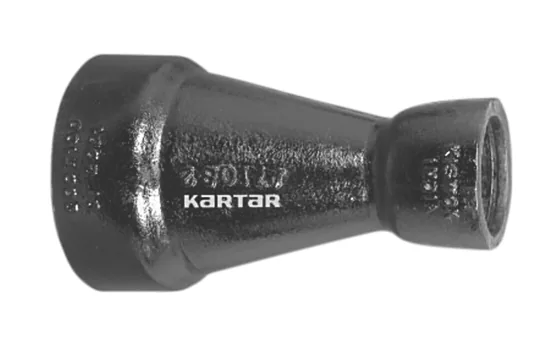

Authorised distributor for Kartar ValvesKartar Valves DI Socket Taper (Reducer)
A ductile iron double socket (D/S) taper that joins pipes of two different sizes, ISI marked to IS 9523, listed from 100 x 100 x 80 to 450 x 450 x 400.
- Double socket (D/S) taper between two pipe sizes
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 100 to 450 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | D/S Tapper |
| Sizes | 100x100x80, 150x150x80, 150x150x100, 200x200x100, 200x200x150, 250x250x100, 250x250x150, 250x250x200, 300x300x100, 300x300x150, 300x300x200, 300x300x250, 350x350x250, 350x350x300, 400x400x350, 450x450x400 |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
