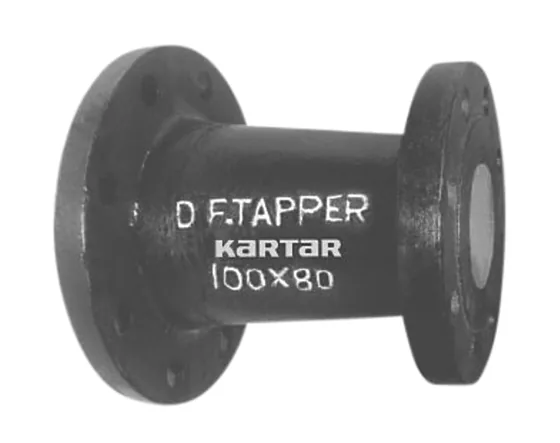

Authorised distributor for Kartar ValvesKartar Valves DI Flange Taper (Reducer)
A ductile iron double flanged (D/F) taper that connects flanged lines of two different sizes, ISI marked to IS 9523, listed from 100 x 100 x 80 to 300 x 300 x 250.
- Double flanged (D/F) taper between two pipe sizes
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 100 to 300 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | D/F Tapper |
| Sizes | 100x100x80, 150x150x80, 150x150x100, 200x200x100, 200x200x150, 250x250x150, 250x250x200, 300x300x200, 300x300x250 |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
