Kartar Valves DI Socket Bend, 90 Degree
Ductile iron double socket (D/S) bend that turns a main through 90 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 500 mm.

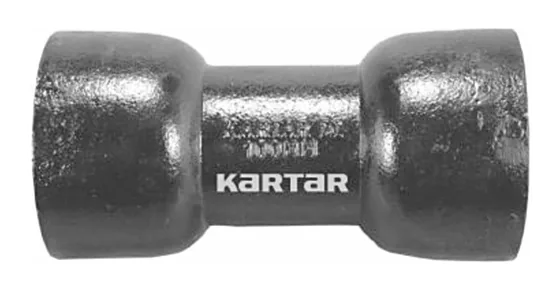

Authorised distributor for Kartar ValvesKartar Valves DI Collar
A ductile iron collar, a sleeve that joins two plain pipe ends and is also used in pipe repairs, ISI marked to IS 9523, in 100 mm to 300 mm.
- Sleeve joining two plain pipe ends
- ISI marked to IS 9523, tested to 25 kg/cm2
- Sizes 100 to 300 mm
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | Collar |
| Sizes | 100mm, 150mm, 200mm, 250mm, 300mm |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
More Kartar Valves DI Pipe Fittings
Kartar Valves DI Socket Bend, 45 Degree
Ductile iron double socket (D/S) bend that turns a main through 45 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 450 mm.
Kartar Valves DI Socket Bend, 22.5 and 11.25 Degree
Ductile iron double socket (D/S) bends for gentle changes of direction, at 22.5 or 11.25 degrees, ISI marked to IS 9523 and tested to 25 kg/cm2, in 80 mm to 450 mm.
Kartar Valves DI Flanged Bend, 90 Degree
Ductile iron double flanged (D/F) bend that turns a line through 90 degrees, typically at pumps and valves, ISI marked to IS 9523, in 80 mm to 300 mm.
Kartar Valves DI Duckfoot Bend with Flange
A flanged ductile iron duck foot bend, a bend with a foot that supports a vertical pipe at its base, ISI marked to IS 9523, in 80 mm to 200 mm.
Kartar Valves DI All Socket Tee
A ductile iron all socket (A/S) tee for taking a branch off a socket jointed main, ISI marked to IS 9523, in sizes from 80 x 80 x 80 to 450 x 450 x 450.
