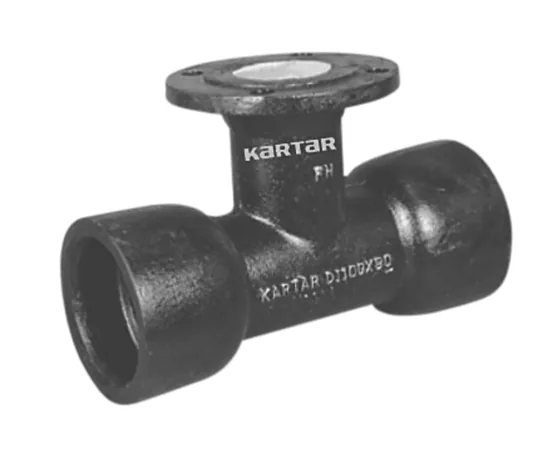

Authorised distributor for Kartar ValvesKartar Valves DI Tee with Flanged Branch (Fire Hydrant and Air Valve Tee)
A ductile iron tee with a flanged branch for fire hydrants and air valves (F.H. / air valve tee), ISI marked to IS 9523, with 40, 50, 80 or 100 mm branches on mains from 80 x 80 to 450 x 450.
- Flanged branch for a fire hydrant or air valve
- ISI marked to IS 9523, tested to 25 kg/cm2
- Branches 40, 50, 80 and 100 mm on mains from 80 x 80 to 450 x 450
Standards and approvals: IS: 9523;2000, ISI Marked
Specifications
Specifications
| Specification | Details |
|---|---|
| Item | F.H./ Air Valve Tee |
| Branch 40mm x | 80x80, 100x100, 150x150 |
| Branch 50mm x | 80x80, 100x100, 150x150, 200x200, 250x250 |
| Branch 80mm x | 80x80, 100x100, 150x150, 200x200, 250x250, 300x300, 350x350, 400x400, 450x450 |
| Branch 100mm x | 100x100, 150x150, 200x200, 250x250, 300x300, 350x350, 400x400, 450x450 |
| Tested | 25kg/cm² Tested |
| Standard | IS: 9523;2000 |
| Note | ISI Marked, D.I. Fittings As Per IS:9523, We Make No Commitment For Weights As IS:9523 Does Not Specify Any Weights. |
Specifications as published by Kartar Valves. Please confirm the exact model with us before ordering.
