Notifier ACPS-610(E) Addressable Charger Power Supply
An auxiliary power supply with a battery charging option, giving 6 amps of shared power to four outputs while charging batteries, or 10 amps with an external charger.

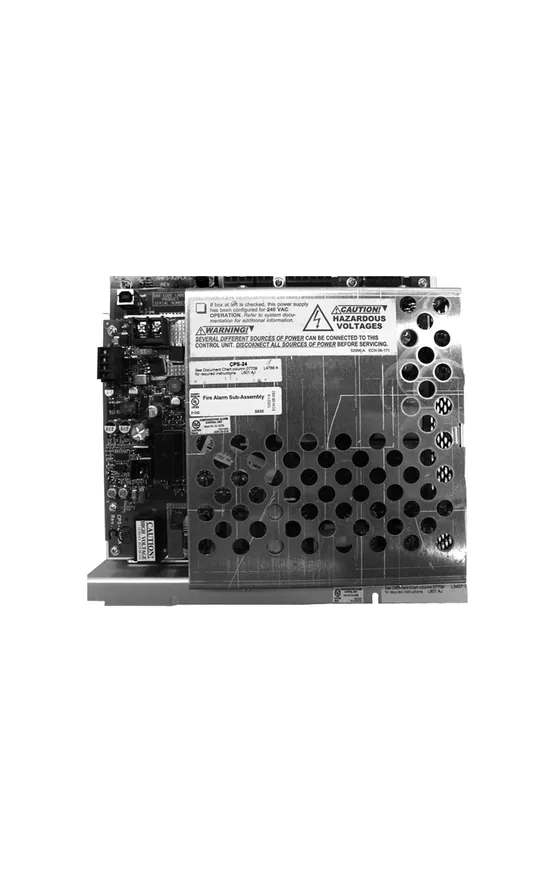

Dealer for NotifierNotifier AMPS-24/E Addressable Power Supply and Battery Charger
An addressable power supply and battery charger with up to three 24 VDC outputs, for the NFS-3030 and NFS2-3030 panels, that can also be the primary supply for the NCA-2 annunciator.
- Up to three 24 VDC outputs
- Works in FlashScan or CLIP (Classic Loop Interface Protocol) mode
- For NFS-3030 and NFS2-3030 fire alarm control panels
- Can be the primary power supply for the NCA-2 Network Control Annunciator
- Takes 10 AWG to 22 AWG wire
- UL and ULC listed, FM approved, with CSFM, MEA and FDNY listings
Standards and approvals: UL: S635, ULC: CS118, City of Chicago, City of Denver, MEA: 345-02-E, CSFM: 7165-0028:224, FM: Approved, FDNY: #6026
Specifications
Specifications
| Specification | Details |
|---|---|
| AMPS24 | 110-120 VAC 50/60 Hz input, 5 A maximum; |
| AMPS24E | 220-240 VAC 50/60 Hz input, 2.5 A maximum. |
| Secondary power (battery) charging circuit | Current-limited, sealed lead-acid battery charger which will charge 7 to 200 AH batteries. |
| Selectable charging current | 1.0 A, 2.0 A or 5.0 A. |
| Wire sizes | 10 AWG (5.26 mm²) to 22 AWG (0.326 mm²). |
| Battery fuse (F2) | 15 A, fast-acting. |
| Shipping Weight | 4.25 lb |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
