Notifier AMPS-24/E Addressable Power Supply and Battery Charger
An addressable power supply and battery charger with up to three 24 VDC outputs, for the NFS-3030 and NFS2-3030 panels, that can also be the primary supply for the NCA-2 annunciator.

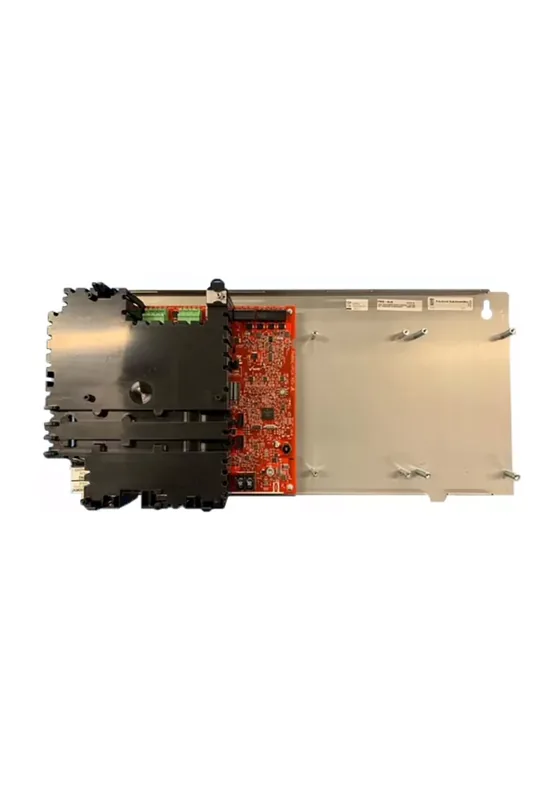

Dealer for NotifierNotifier INSPIRE PMB AUX Series Addressable Power Supply
An addressable power supply for INSPIRE N16 panels with four power-limited NAC outputs, two 24 VDC auxiliary outputs and a remote sync input.
- Addressable on the CLP bus
- Four power-limited NAC outputs, Class A or Class B wiring
- 6 amps in standby, 8.5 amps in alarm; two 24 VDC auxiliary outputs
- Charges 7 AH to 100 AH batteries, up to 210AH with PMBNL-PCB Rev B or higher
- UL listed for agent and water releasing with FCM-1-REL
- UL listed, FM approved, CSFM, FDNY and OSHPD; UL 864 and NFPA 72
Standards and approvals: UL Listed: S635, FM Approved: FM23FPUS0095, CSFM: 7165-0028:0516, FDNY: COA#001761, Certified for Seismic applications in accordance with IBC, OSHPD Approved: OSP-0072, UL 864, 10th edition, NFPA 72 National Fire Protection Association
Specifications
Specifications
| Specification | Details |
|---|---|
| AC power | 2.5A, 120VAC, 50/60 HZ; 1.25A, 240VAC, 50/60 Hz • 24VDC aux outputs: Aux Power 1 to 24VDC, Class A/B, Power-limited (Class 2), NAC 1.5 A Special Applications, Releasing 2.0 A Special Applications, Resettable/Non-Resettable Aux Power 2 to 24VDC, Class B, Power-limited (Class 2), NAC 1.5 A Special Applications, Releasing 2.0 A Special Applications, Resettable/Non-Resettable |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
