Notifier AMPS-24/E Addressable Power Supply and Battery Charger
An addressable power supply and battery charger with up to three 24 VDC outputs, for the NFS-3030 and NFS2-3030 panels, that can also be the primary supply for the NCA-2 annunciator.

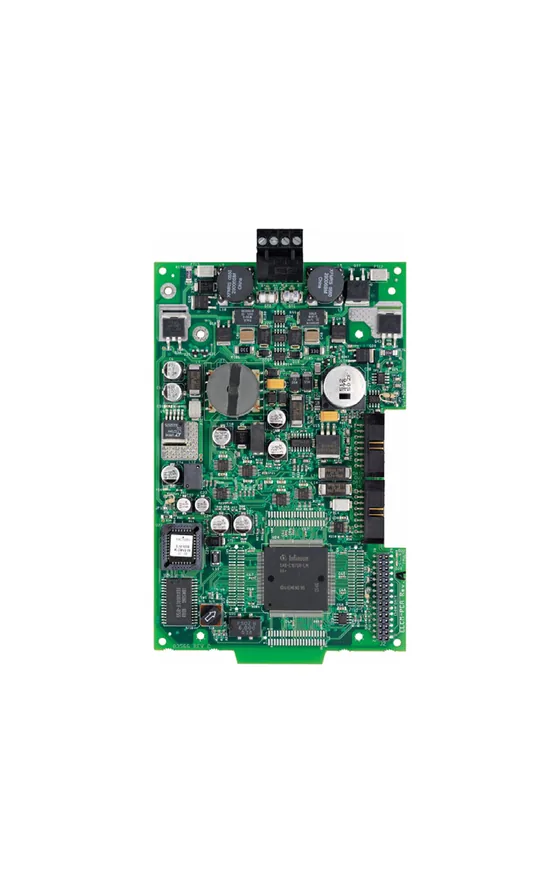

Dealer for NotifierNotifier LCM-320 Loop Control Module
A plug-in loop control module that adds signalling line circuits to ONYX NFS2-640 and NFS2-3030 fire alarm control panels.
- Adds SLC loops to NFS2-640 and NFS2-3030 panels
- Up to 12,500 feet (3,810 m) on a Class B (Style 4) SLC loop, twisted unshielded
- Built-in degraded mode for survivability
- Plug-in style for simple installation; multiple loops in a small enclosure
- 24 VDC nominal, 27.6 VDC maximum
- UL and ULC listed, FM approved, with CSFM and FDNY listings
Standards and approvals: UL: S635, ULC: S635/CS118, FM Approved, CSFM: 7165-0028:224, 7170-0028:223 (LCM/LEM-320, FDNY: COA#6025 (LEM-320 with NFS2-640), FDNY: COA#6026 (LCM-320/LEM-320 with NFS2-3030), City of Denver, Hong Kong
Specifications
Specifications
| Specification | Details |
|---|---|
| Voltage | 24 VDC nominal, 27.6 VDC maximum. |
| Maximum current | for LCM-320: 130 mA; for LEM-320: 100 mA; for single SLC loop: 400 mA maximum. |
| Maximum resistance | 50 ohms (supervised and power- limited). |
Specifications as published by Notifier. Please confirm the exact model with us before ordering.
