Dealer for RavelRavel Eliprobe Archon Emergency Lighting Controller

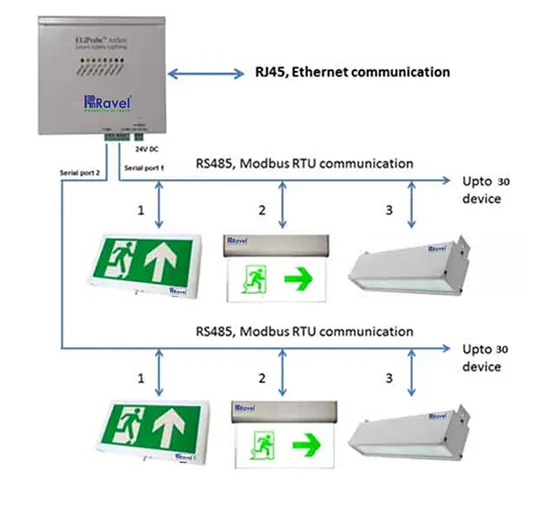

A gateway that links emergency luminaires on an RS485 Modbus RTU network and brings them into a central monitoring system.
- Health checks of power supply, battery, charger and LED lamps
- Remote on, off and dimming of luminaires
- Stores up to 1 year of health test reports
- Web based configuration and monitoring, on site or through a cloud platform
- 1 Ethernet port and 2 RS485 ports
- 24 V AC/DC supply
Specifications
Specifications
| Specification | Details |
|---|---|
| Input voltage | 24V AC/DC |
| Dimension | 100mm x 100mm x 60mm (approx.) |
| Weight | 300g (approx.) |
| Application software | Web based GUI for Configuration & Monitoring, Ravel developed serial protocol master |
| Interface | 1 x Ethernet port, 2 RS485 ports |
| Operating temp | 0°C 0°C to 60°C |
| Rating IP | 20 IP |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
