Ravel LumiCzar Emergency Exit Sign, Sheet Metal Housing
An LED emergency exit sign in a white sheet metal housing, with Ni-MH battery backup of at least 90 minutes.

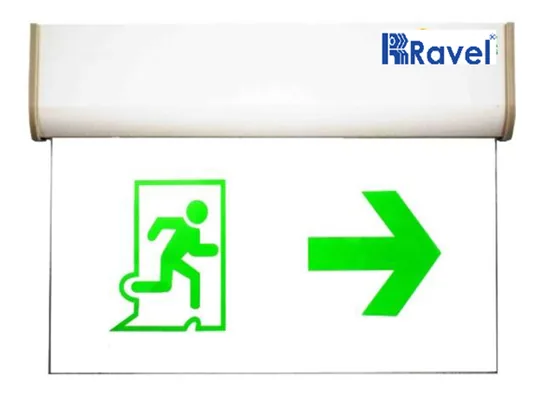

Dealer for RavelRavel LumiCzar Emergency Exit Sign, Aluminium Housing
An LED emergency exit sign in a white aluminium housing with universal mounting and Ni-MH battery backup of at least 90 minutes.
- 2 W LED, viewing distance of at least 22 m
- Battery backup of at least 90 minutes, Ni-MH battery
- Universal mounting: hanging, wall, ceiling or recessed
- LED shows mains or battery operation
- Sign board easy to replace or change
- 200 to 265 V AC input, IP20
Standards and approvals: EN 61547:2009, EN 55015:2013+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC/EN 60598-2-22, IEC/EN60598-1
Specifications
Specifications
| Specification | Details |
|---|---|
| Input voltage | 200VAC to 265VAC, 47Hz to 63Hz, 1-ph |
| Housing | Aluminium with white colour. |
| Light source | LED (6500K), 2Watts |
| Viewing Distance | ≥22 meters |
| Battery Backup | ≥90 Minutes |
| Battery type | Ni-MH Rechargeable Battery |
| Battery Cycle | ≥500 Cycle |
| Weight | 1100 grams approximately |
| Dimension | 314mm (L), 35mm(D), 242 mm (H) |
| Application | Indoor: commercial and industrial use |
| Mounting | Hanging, Wall and Ceiling option: Recessed Mount |
| IP Rating | IP20 |
| Manufacturing | India |
| Operating Temp | 0°C to 50°C |
| Designed | As per EMI/EMC compliance. Safety tested EN 61547:2009, EN 55015:2013+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC/EN 60598-2-22(3rd Edition):1997+A1:2002+A2:2008, IEC/EN60598-1(7th Edition) |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
