Ravel LumiCzar Emergency Exit Sign, Aluminium Housing
An LED emergency exit sign in a white aluminium housing with universal mounting and Ni-MH battery backup of at least 90 minutes.

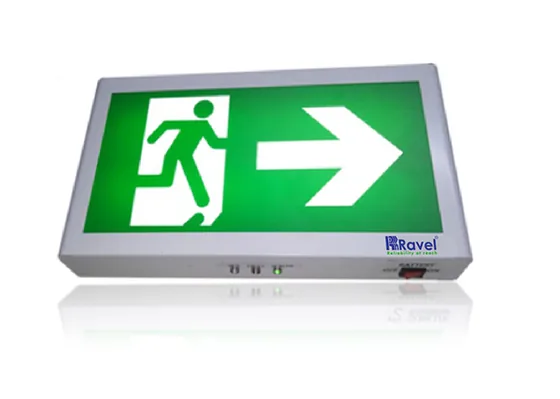

Dealer for RavelRavel LumiCzar Emergency Exit Sign, Sheet Metal Housing
An LED emergency exit sign in a white sheet metal housing, with Ni-MH battery backup of at least 90 minutes.
- 2 W LED, viewing distance of at least 20 m
- Battery backup of at least 90 minutes, Ni-MH battery
- LED shows mains or battery operation
- Sign board easy to replace or change
- Switch to stop battery discharge until the sign is installed
- 200 to 265 V AC input, IP20, wall, hanging, ceiling or side mounting
Standards and approvals: EN 61547:2009, EN 55015:2013+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC/EN 60598-2-22, IEC/EN60598-1
Specifications
Specifications
| Specification | Details |
|---|---|
| Input voltage | 200VAC to 265VAC, 47Hz to 63Hz, 1-ph |
| Housing | Sheet metal with white colour. |
| Light source | LED (6500K), 2Watts |
| Viewing Distance | ≥20 meters |
| Battery Backup | ≥90 Minutes |
| Battery type | Ni-MH Rechargeable Battery |
| Battery Cycle | ≥500 Cycle |
| Weight | 1400 grams approximately |
| Dimension | 373mm (L), 54mm(D),194 mm (H) |
| Application | Indoor: commercial and industrial use |
| Mounting | Wall, Hanging option: ceiling, Side mount |
| IP Rating | IP20 |
| Manufacturing | India |
| Operating Temp | 0°C to 50°C |
| Designed | As per EMI/EMC compliance. Safety tested EN 61547:2009, EN 55015:2013+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC/EN 60598-2-22(3rd Edition):1997+A1:2002+A2:2008, IEC/EN60598-1(7th Edition) |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
