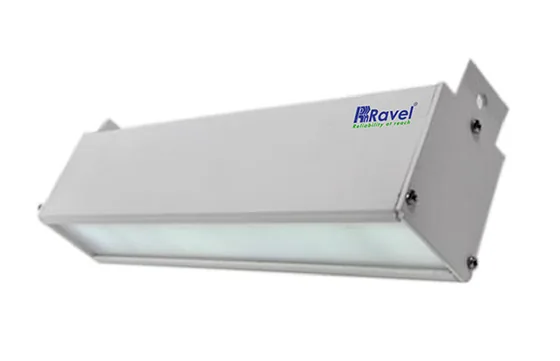

Dealer for RavelRavel LumiCzar Basic Emergency Light
A compact LED emergency light giving 270 lumens from 4 W, with Ni-MH battery backup of at least 1.5 hours.
- 270 lumens from a 4 W cool white LED
- Battery backup of at least 1.5 hours, Ni-MH battery
- Over and under voltage cut off for the battery
- 85 to 265 V AC input
- White sheet metal housing, IP20, 0°C to 55°C
- Wall, hanging, ceiling, side or recessed mounting
Standards and approvals: EN 61547:2009, EN 55015:2013+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC/EN 60598-2-22, IEC/EN60598-1
Specifications
Specifications
| Specification | Details |
|---|---|
| Model | LZR-XSM10 |
| Input voltage | 85VAC to 265VAC, 50Hz to 60Hz, 1-ph |
| Housing | Sheet metal with white colour. |
| Light source | (6500K) cool white LED |
| Watt | 4 Watts |
| Lumens | 270lm |
| Battery Backup | ≥1.5 hours. |
| Battery type | Ni-MH Rechargeable Battery |
| Battery Cycle | ≥500 Cycle |
| Battery production | Over voltage/under voltage cutoff. |
| Battery Charger | Implemented to extend the battery life |
| Weight | 200 grams approximately |
| Dimension | 373mm (L), 54mm(D),75mm (H) |
| Application | Indoor: commercial and industrial use |
| IP Rating | IP20 |
| Manufacturing | India |
| Operating Temp | 0°C to 55°C |
| Mounting | Wall, Hanging mount, ceiling, Side mount option: recessed mount |
| Compliance. | As per EN 61547:2009, EN 55015:2013+A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC/EN 60598-2-22(3rd Edition):1997+A1:2002+A2:2008, IEC/EN60598-1(7th Edition) |
Specifications as published by Ravel. Please confirm the exact model with us before ordering.
