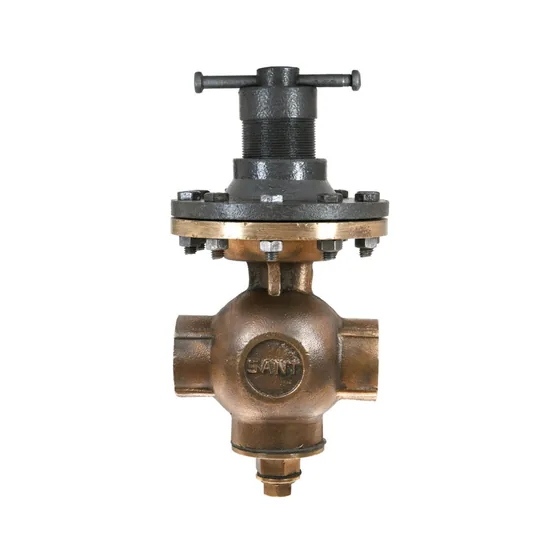

Authorised distributor for Sant ValvesSant Valves IBR-17A Bronze Pressure Reducing Valve
Spring loaded gun metal pressure reducing valve with a rubber diaphragm, available in three outlet pressure ranges, for water and air. Screwed ends, 15 mm to 50 mm.
- Gun metal body to IS:318 Gr.LTB2, integral seat, renewable disc
- Outlet ranges 5/60, 20/80 and 40/125 psig
- Maximum inlet 250 psig, service temperature 50°C
- Female BSP parallel threads to BS 21, hydraulic test 500 psig
Sizes: 15 mm to 50 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|
| Nominal Size | 15 | 20 | 25 | 32 | 40 | 50 |
| Nominal Size (Inches) | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| F | 76 | 110 | 115 | 140 | 140 | 170 |
| H | 155 | 165 | 175 | 220 | 220 | 315 |
| B | 60 | 75 | 85 | 95 | 95 | 130 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
