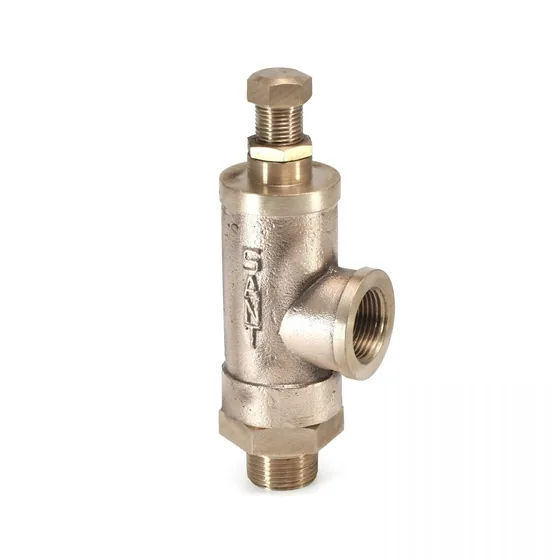

Authorised distributor for Sant ValvesSant Valves IBR-22 Bronze Pressure Relief Valve, Right Angle, Enclosed Discharge
Right angle, spring loaded gun metal relief valve with enclosed discharge, so the released flow can be piped away. Sizes 8 mm to 50 mm, for water and air.
- Gun metal body to IS:318 Gr.LTB2, integral seat, renewable disc
- Cu-alloy trim
- Male BSP parallel inlet, female BSP parallel outlet, to BS 21
- Maximum working pressure 150 psig, hydraulic test 300 psig
Sizes: 8 mm to 50 mm
Specifications
Specifications
| Specification | 8 mm | 10 mm | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm |
|---|---|---|---|---|---|---|---|---|
| Nominal Size | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 |
| Size (Inches) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1.1/4 | 1.1/2 | 2 |
| A (Inches) | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1.1/4″ | 1.1/2″ | 2″ |
| B (Inches) | 1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1.1/4″ | 1.1/2″ | 2″ |
| H (Approx.) | 160 | 160 | 160 | 170 | 175 | 215 | 240 | 265 |
| C | 35 | 35 | 35 | 40 | 46 | 54 | 60 | 72 |
| D | 61 | 61 | 61 | 73 | 84 | 85 | 95 | 103 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
