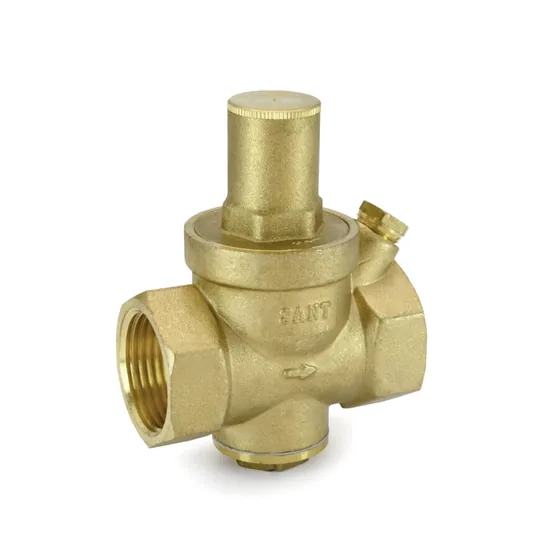

Authorised distributor for Sant ValvesSant Valves PRV Forged Brass Pressure Reducing Valve
Spring loaded forged brass pressure reducing valve with a screwed in bonnet, for water and compressed air. Sizes 15 mm to 100 mm.
- Forged brass body, screwed in bonnet, spring loaded
- For water and compressed air
- Maximum inlet pressure 16 barg, outlet pressure range 1 to 6 bar
- Body test 16 barg (232 psig) hydraulic
Sizes: 15 mm to 100 mm
Specifications
Specifications
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 65 mm | 80 mm | 100 mm |
|---|---|---|---|---|---|---|---|---|---|
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| L | 74 | 74 | 75 | 84 | 110 | 118 | 138 | 180 | 190 |
| W | 22 | 22 | 24 | 27 | 36 | 36 | 42 | 54 | 54 |
| H | 93 | 93 | 100 | 122 | 160 | 160 | 202 | 252 | 254 |
Specifications as published by Sant Valves. Please confirm the exact model with us before ordering.
