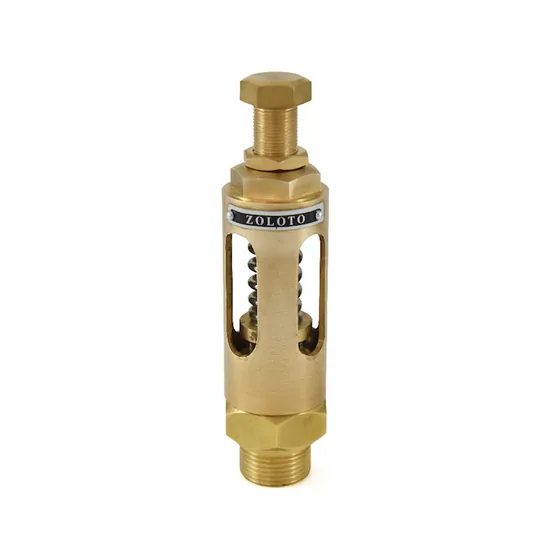

Dealer for ZolotoSpring loaded safety relief valve with open discharge, bronze or forged brass body and a male screwed end, set pressure range up to 10 kg/cm²g, 15 mm to 50 mm.
Sizes: 15 mm to 50 mm
| Specification | 15 mm | 20 mm | 25 mm | 32 mm | 40 mm | 50 mm | 1094 |
|---|---|---|---|---|---|---|---|
| Size (Inches) | 1/2* | 3/4* | 1* | 1 1/4 | 1 1/2 | 2 | |
| Size (mm) | 15* | 20* | 25* | 32 | 40 | 50 | |
| A (Max.) | 170 | 170 | 190 | 203 | 225 | 265 | |
| B | 1/2″ | 3/4″ | 1″ | 1 1/4″ | 1 1/2″ | 2″ | |
| Shell | 21.10 kg/cm²g (300 psig) | ||||||
| Seat | 10.55 kg/cm²g (150 psig) | ||||||
| Set Pressure Range | 0 to 10 kg/cm²g (Max.) | ||||||
| Maximum Working Temperature | 80°C |
Specifications as published by Zoloto. Please confirm the exact model with us before ordering.
Sizes: 15 mm to 50 mm
Compact forged brass pressure reducing valve that works on line pressure alone, for inlet pressures up to 25 bar, with female threaded ends from 15 mm to 50 mm.
Sizes: 65 mm, 80 mm, 100 mm
Bronze version of Zoloto's compact pressure reducing valve for the larger sizes, 65 mm to 100 mm, taking inlet pressures up to 25 bar with female threaded ends.
Sizes: 15 mm to 50 mm
Enclosed discharge version of Zoloto's spring loaded safety relief valve, with a male screwed end and a set pressure range up to 10 kg/cm²g, 15 mm to 50 mm.
Sizes: 15 mm to 100 mm
Spring loaded forged brass pressure reducing valve with a screwed in bonnet, for water and compressed air. Sizes 15 mm to 100 mm.
Sizes: 15 mm to 50 mm
Spring loaded gun metal pressure reducing valve with a rubber diaphragm, available in three outlet pressure ranges, for water and air. Screwed ends, 15 mm to 50 mm.
Sizes: 15 mm to 50 mm
Compact piston type pressure reducing valve with screwed female ends, from 15 mm to 50 mm, for water and air. The website lists PN10, PN16 and PN25 set at 3 bar unless specified; the product list gives the forged brass K608 in PN1.6 with a 2 to 16 kg/cm2 output and a maximum reduction to 1/4 of inlet pressure.
