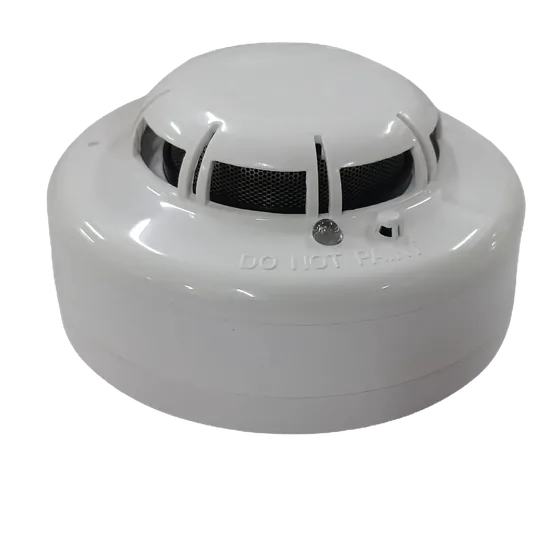

Dealer for AgniA conventional smoke cum heat detector for open area protection that senses both smoke and temperature, with a heat alarm point of 57 °C. It is designed for use with most conventional fire alarm panels.
Standards and approvals: EN54, UL listed
| Specification | QS388-2HL |
|---|---|
| Operating Voltage Range | 9 to 33VDC Volts Non-polarized |
| Standby Current | ≤0.1mA@24VDC |
| Maximum Alarm Current (LED on) | 25mA@24VDC |
| Operating Humidity Range | ≤95%RH(40°C±2°C) non-condensing |
| Operating Temperature Range | -10°C to 50°C |
| Smoke Alarm Sensitivity | 0.5dB/m(±0.1dB/m) |
| Temperature Alarm Sensitivity | 57°C (135°F) |
| Height | 53 mm installed in Base |
| Diameter | 103 mm |
Specifications as published by Agni. Please confirm the exact model with us before ordering.
A conventional photoelectric smoke detector for open area protection, suited to the dense smoke of smouldering fires in soft furnishings, plastics and foam. It is designed for use with most conventional fire alarm panels.
A conventional heat detector that raises the alarm when the surrounding air reaches its preset temperature. It is meant for places where smoke detectors could give false alarms because of dust, fumes, steam or normal smoke.
A low profile conventional detector that combines smoke sensing with thermal sensing, which Agni calls a photo thermal detector. It has a bi-colour status LED and a remote alarm test feature.
A low profile conventional photoelectric smoke detector with a bi-colour status LED, low current draw and a remote alarm test feature.
A low profile conventional heat detector that responds to a fast rise in temperature, with a bi-colour status LED and a remote alarm test feature.
A 4 wire conventional smoke detector with an optical sensing chamber, designed for open area protection and for use with most conventional fire alarm panels.
A battery operated, Wi-Fi enabled photoelectric smoke detector from the IMPACT by Honeywell range. When smoke reaches its alarm threshold it sounds a buzzer, flashes an LED and sends real-time alerts to a smartphone through the IMPACT by Honeywell app.
A battery operated standalone smoke alarm with photoelectric sensing that sounds an alarm and lights a red LED when smoke reaches its threshold. It runs on two AA batteries and also warns of a low battery or a chamber fault.
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
