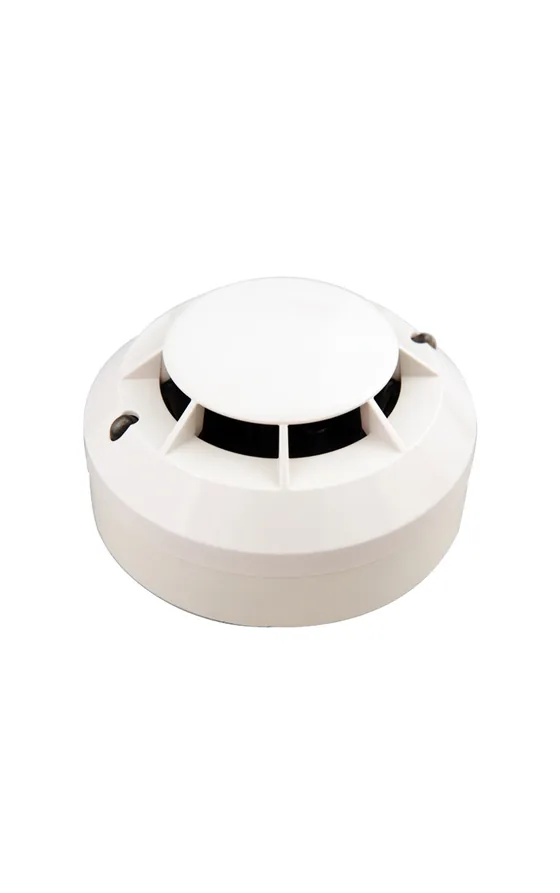

Dealer for Morley by HoneywellAn S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.
Standards and approvals: EN54-17 : 2005, EN54-7 : 2000+A1:2002+A2:2006
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
| Specification | HM/PSE/S2 |
|---|---|
| HEIGHT | 52mm installed in B501AP base |
| DIAMETER | 102mm installed in B501AP base |
| WEIGHT | 97g (inc base) |
| MAX WIRE GAUGE FOR TERMINALS | 2.5mm2 |
| COLOUR | White |
| MATERIAL | PC / ABS |
| OPERATING VOLTAGE RANGE | 260µA at 24Vdc (no communications) / 310µA at 24Vdc (LED blink enabled, once every 5s) |
| MAXIMUM STANDBY CURRENT | 260µA at 24Vdc (no communications) 310µA at 24Vdc (LED blink enabled, once every 5s) |
| LED CURRENT | 3.5mA at 24V |
| REMOTE OUTPUT VOLTAGE | 22.5Vdc @ 24Vdc |
| REMOTE OUTPUT CURRENT | 10.8mA @ 24Vdc |
| ADDITIONAL LOOP RESISTANCE USING THE B501AP | typ 20mohm (max 30 mohm) |
| TEMPERATURE RANGE | -30°C to +70°C |
| HUMIDITY | 10 to 93% relative humidity (non-condensing) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
