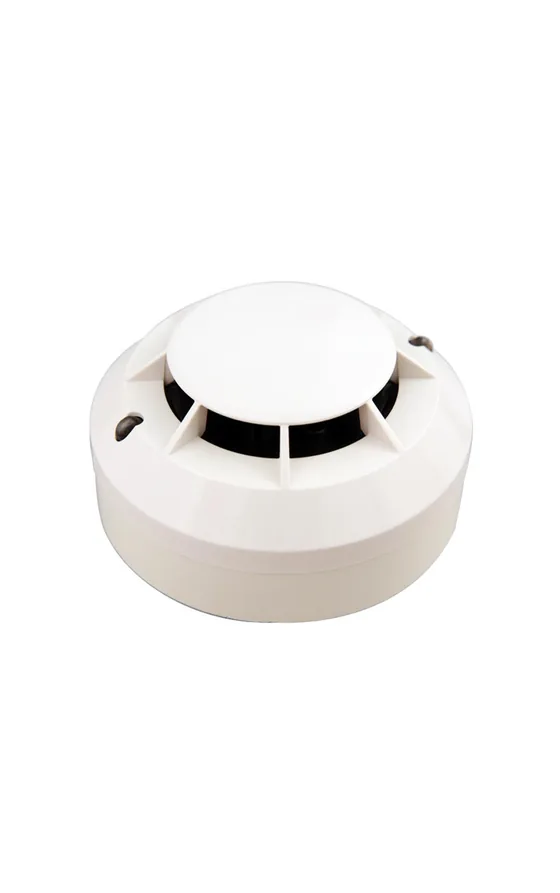

Dealer for Morley by HoneywellMorley by Honeywell HM-PSE-AP / HM-PSE-I-AP Photoelectric Smoke Detector (Morley Max)
The Morley Max smoke detector on the HM Series Advanced Protocol platform, offered without an isolator (HM-PSE-AP) or with a built-in isolator (HM-PSE-I-AP).
- HM Series Advanced Protocol: more devices on the loop, more control and configuration
- Standard (HM-PSE-AP) or isolator version (HM-PSE-I-AP)
- Isolator version: 15 to 28V DC, listed to EN 54-17
- 52 mm high and 102 mm diameter in a B501AP base, 97g including base
- White PC/ABS body, -30°C to +70°C
- EN 54-7
Standards and approvals: EN54-7 : 2000+A1:2002+A2:2006, EN54-17 : 2005
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM-PSE-AP | HM-PSE-I-AP |
|---|---|---|
| HEIGHT | 52mm installed in B501AP base | 52mm installed in B501AP base |
| DIAMETER | 102mm installed in B501AP base | 102mm installed in B501AP base |
| WEIGHT | 97g (inc base) | 97g (inc base) |
| MAX WIRE GAUGE FOR TERMINALS | 2.5mm2 | 2.5mm2 |
| COLOUR | White | White |
| MATERIAL | PC / ABS | PC / ABS |
| OPERATING VOLTAGE RANGE | 260µA at 24Vdc (no communications) / 310µA at 24Vdc (LED blink enabled, once every 5s) | 15 to 28Vdc |
| MAXIMUM STANDBY CURRENT | 260µA at 24Vdc (no communications) 310µA at 24Vdc (LED blink enabled, once every 5s) | 200µA at 24Vdc (no communications) 300µA at 24Vdc (LED blink enabled, once every 5s) |
| LED CURRENT | 3.5mA at 24V | |
| REMOTE OUTPUT VOLTAGE | 22.5Vdc @ 24Vdc | 22.5Vdc @ 24Vdc |
| REMOTE OUTPUT CURRENT | 10.8mA @ 24Vdc | |
| ADDITIONAL LOOP RESISTANCE USING THE B501AP | typ 20mohm (max 30 mohm) | typ 20mohm (max 30 mohm) |
| TEMPERATURE RANGE | -30°C to +70°C | -30°C to +70°C |
| HUMIDITY | 10 to 93% relative humidity (non-condensing) | 10 to 93% relative humidity (non-condensing) |
| ISOLATION CURRENT | 15mA at 24Vdc | |
| MAXIMUM CONTINUOUS CURRENT | 1A (Switch Closed) | |
| ADDITIONAL LOOP RESISTANCE | typ 80 mohm @24V (max 170mohm @ 15V) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
