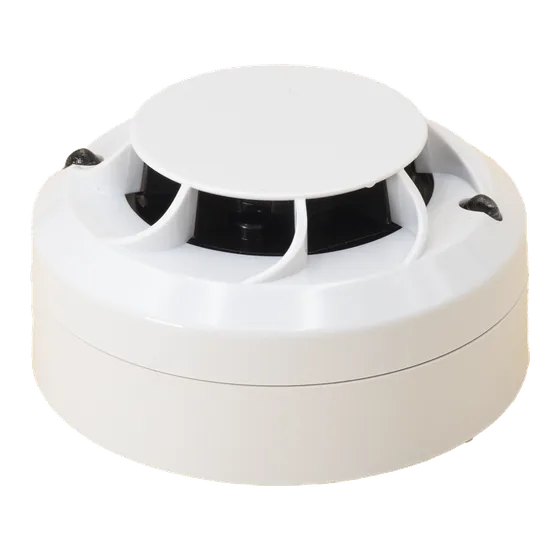

A white addressable photoelectric smoke detector working on the light scattering principle, with smoothing filters and embedded software to resist unwanted alarms. The 22051EI version has a built-in isolator.
Standards and approvals: CPR, UKCA
| Specification | 22051E | 22051EI |
|---|---|---|
| Operating Voltage Range | 15 to 32Vdc | |
| Maximum Standby Current | 200µA at 24VDC (no communications) / 300µA at 24VDC ( LED blink enabled, once every 5s) | 200µA at 24VDC (no communications) / 300µA at 24VDC ( LED blink enabled, once every 5s) |
| Led Current | Red: 3.5mA at 24Vdc | Green: 7.0mA @ 24Vdc | Yellow: 10.5mA @ 24Vdc | Red: 3.5mA at 24Vdc | Green: 7.0mA @ 24Vdc | Yellow: 10.5mA @ 24Vdc |
| Remote Out put Voltage | 22.5Vdc @ 24Vdc | 22.5Vdc @ 24Vdc |
| Remote Output Current | 10.8mA @ 24Vdc | 10.8mA @ 24Vdc |
| Additional loop resistance using the B501AP | typ 20mohm (max 30 mohm) | typ 20mohm (max 30 mohm) |
| Temperature Range | -30°C to +80°C † | -30°C to +80°C † |
| Humidity | 10 to 93% relative Humidity (non-condensing) | 10 to 93% relative Humidity (non-condensing) |
| Height | 52mm installed in B501AP base | 52mm installed in B501AP base |
| Diameter | 102mm installed in B501AP base | 102mm installed in B501AP base |
| Weight | 97g (inc base) | 97g (inc base) |
| Max Wire Gauge for Terminals | 2.5mm2 | 2.5mm2 |
| Colour | White | White |
| Material | PC/ABS | PC/ABS |
| Isolation Current | 15mA at 24VDC | |
| Maximum Continuous Current | 1A (Switch Closed) |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
