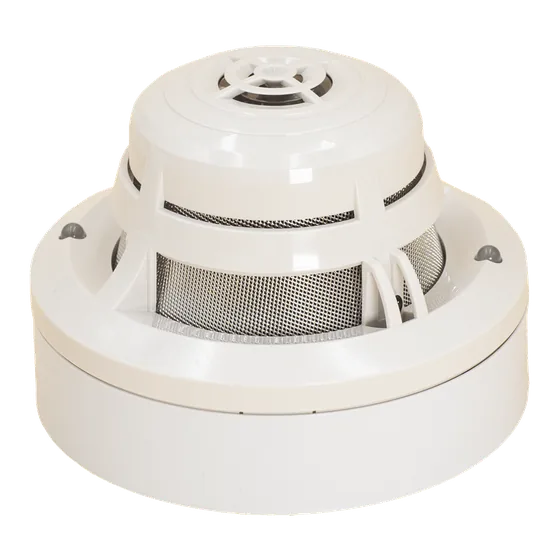

A multi-criteria detector that combines carbon monoxide, photoelectric smoke, heat and infrared sensing in one device. It normally runs at high immunity and becomes very sensitive when fire characteristics are sensed.
Standards and approvals: CPR, UKCA
| Specification | 2251CTLE |
|---|---|
| Operating Voltage Range | 15 to 32Vdc |
| Maximum Standby Current | 200µA at 24VDC (no communications) |
| Maximum Alarm Current | 7mA at 24VDC |
| Application Temperature Range | -20°C to +55°C |
| Humidity | 15 to 90% relative Humidity (non-condensing) |
| Height | 66mm installed in B501 base |
| Diameter | 102mm installed in B501 base |
| Weight | 176g (inc base) |
| Max Wire Gauge for Terminals | 2.5mm2 |
| Colour | Ivory |
| Material | Bayblend FR110 |
| IR Limits | 0-450 uW/cm2 |
| CO Limits | 0-500 PPM |
Specifications as published by System Sensor. Please confirm the exact model with us before ordering.
A white addressable photoelectric smoke detector working on the light scattering principle, with smoothing filters and embedded software to resist unwanted alarms. The 22051EI version has a built-in isolator.
A two sensor detector that adds thermal sensing to the photoelectric smoke chamber for better false alarm immunity and a faster response to a wide range of fires. The 22051TEI version has a built-in isolator.
A three sensor photo-thermal-infrared (PTIR) detector that System Sensor presents as the environmentally friendly alternative to ionisation detectors, with a comparable response to fast flaming fires and fewer false alarms.
Analogue addressable heat detectors using a low mass thermistor and microprocessor for fast response, covering 58°C and 78°C fixed temperature and rate of rise. Any model can be configured in software to the mode needed.
A high sensitivity addressable smoke sensor with a high power IR LED and a high gain receiver amplifier, which System Sensor rates 100 times more sensitive than standard smoke sensors.
A plug-in intrinsically safe photoelectric smoke sensor with analogue addressable communications, engineered so it cannot become a source of ignition in potentially explosive atmospheres.
A battery operated, Wi-Fi enabled photoelectric smoke detector from the IMPACT by Honeywell range. When smoke reaches its alarm threshold it sounds a buzzer, flashes an LED and sends real-time alerts to a smartphone through the IMPACT by Honeywell app.
A battery operated standalone smoke alarm with photoelectric sensing that sounds an alarm and lights a red LED when smoke reaches its threshold. It runs on two AA batteries and also warns of a low battery or a chamber fault.
An intelligent addressable photoelectric smoke detector with an optical chamber that senses smoke from a wide range of fires, and sensitivity that is programmable and monitored by the panel.
An intelligent photoelectric smoke detector with dual thermistors that add 135°F (57°C) fixed temperature heat sensing in the same head.
An S200A plug-in photoelectric smoke detector listed with the DXc and ZXSe panels. Its detection chamber is designed to cut false alarms from dust, insects and other debris.
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
