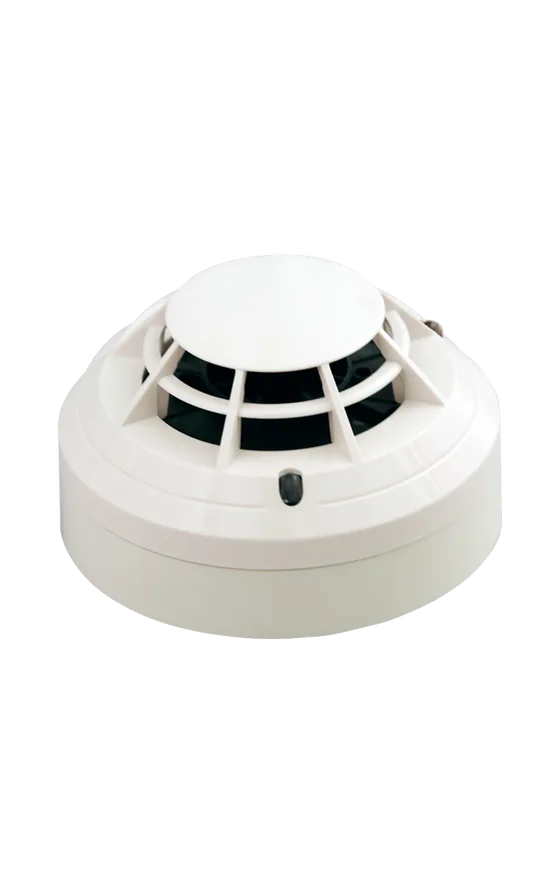

Dealer for Morley by HoneywellMorley by Honeywell HM/PTSE Photo-Thermal Multi-Criteria Detector (DXc and ZXSe)
An S200A multi-criteria detector that adds 58°C fixed temperature and rate of rise thermal sensing to a photoelectric smoke sensor, for better false alarm immunity and faster response to a wide range of fires.
- Photoelectric smoke sensing to EN 54-7 with thermal assistance to EN 54-5
- Two sensing elements managed by embedded software as one unit
- Six alarm level settings, from 1%/ft smoke to Class A1R
- 15 to 32V DC operating voltage
- 61 mm high in a B501AP base, 99g including base, -30°C to +70°C
- Also lists EN 54-17, EN 54-29 and CEA 4021
Standards and approvals: EN54-5:2000+A1:2002, EN54-7 : 2000+A1:2002+A2:2006, EN54-17 : 2005, CEA 4021:2003, EN54-29:2015
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/PTSE |
|---|---|
| HEIGHT | 61mm installed in B501AP base |
| DIAMETER | 102mm installed in B501AP base |
| WEIGHT | 99g (inc base) |
| MAX WIRE GAUGE FOR TERMINALS | 2.5mm2 |
| COLOUR | White |
| MATERIAL | PC / ABS |
| OPERATING VOLTAGE RANGE | 15 to 32Vdc |
| MAXIMUM STANDBY CURRENT | 260µA at 24Vdc (no communications) 310µA at 24Vdc ( LED blink enabled, once every 5s) |
| LED CURRENT | 3.5mA at 24Vdc |
| REMOTE OUTPUT VOLTAGE | 22.5Vdc @ 24Vdc |
| REMOTE OUTPUT CURRENT | 10.8mA @ 24Vdc |
| ADDITIONAL LOOP RESISTANCE USING THE B501AP | typ 20mohm (max 30 mohm) |
| TEMPERATURE RANGE | -30°C to +70°C |
| HUMIDITY | 10 to 93% relative humidity (non-condensing) |
| ALARM LEVEL 1 | 1%/ft smoke |
| ALARM LEVEL 2 | 2%/ft smoke |
| ALARM LEVEL 3 | 3%/ft smoke |
| ALARM LEVEL 4 | 3%/ft smoke |
| ALARM LEVEL 5 | 3%/ft smoke |
| ALARM LEVEL 6 | Class A1R |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
