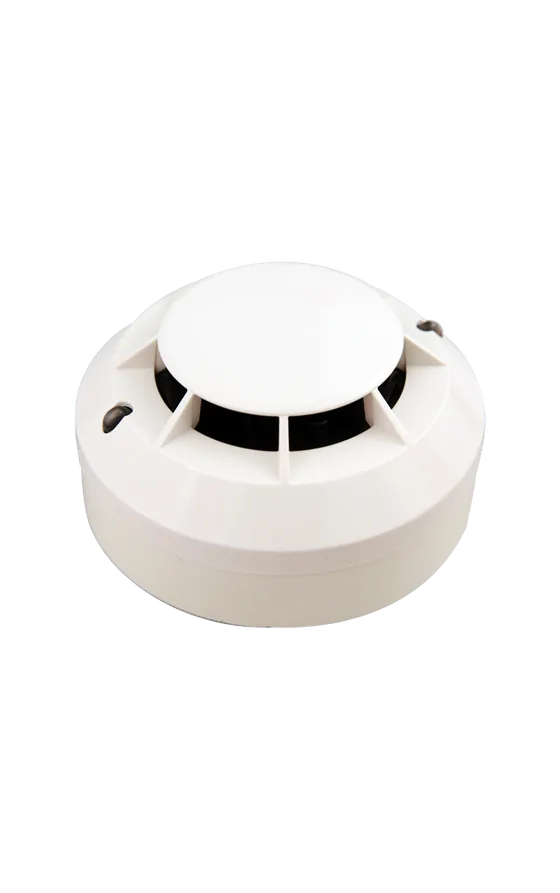

Dealer for Morley by HoneywellMorley by Honeywell HM/RHSE Rate of Rise Heat Detector, Class A1R (DXc and ZXSe)
A plug-in addressable heat detector with a single thermistor sensing circuit, giving fixed 58°C and rate of rise (10°C per minute) detection to EN 54-5 Class A1R.
- Fixed 58°C plus rate of rise (10°C per minute) sensing
- EN 54-5 Class A1R
- Single thermistor sensing circuit for early warning
- 15 to 32V DC operating voltage
- 61 mm high in a B501AP base, 88g including base
- White PC/ABS body, -30°C to +70°C
Standards and approvals: EN54-5: 2000 Class A1R
Download the official Morley by Honeywell catalogue (PDF, 2.3 MB)
Specifications
Specifications
| Specification | HM/RHSE |
|---|---|
| HEIGHT | 61mm installed in B501AP base |
| DIAMETER | 102mm installed in B501AP base |
| WEIGHT | 88g (inc base) |
| MAX WIRE GAUGE FOR TERMINALS | 2.5mm2 |
| COLOUR | White |
| MATERIAL | PC / ABS |
| OPERATING VOLTAGE RANGE | 15 to 32Vdc |
| MAXIMUM STANDBY CURRENT | 260µA at 24Vdc (no communications) 310µA at 24Vdc ( LED blink enabled, once every 5s) |
| LED CURRENT | 3.5mA at 24Vdc |
| REMOTE OUTPUT VOLTAGE | 22.5Vdc @ 24Vdc |
| REMOTE OUTPUT CURRENT | 10.8mA @ 24Vdc |
| ADDITIONAL LOOP RESISTANCE USING THE B501AP | typ 20mohm (max 30 mohm) |
| TEMPERATURE RANGE | -30°C to +70°C |
| HUMIDITY | 10 to 93% relative humidity (non-condensing) |
Specifications as published by Morley by Honeywell. Please confirm the exact model with us before ordering.
