HD Fire Automatic Ball Drip Valve, Bronze
A bronze automatic ball drip valve that forms part of HD's UL Listed deluge valve trim. It is used with the ETW-D, NTW, ETD-D and NTD trims on all HD deluge valve models.

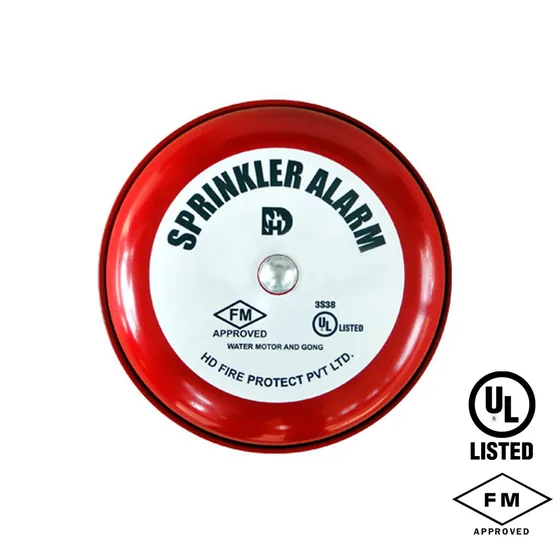

Dealer for HD FireHD Fire Water Motor Gong Bell for Deluge Valves
A hydraulically operated mechanical bell that serves as an outdoor alarm on fire protection system valves. The gong, cover and motor housing are corrosion resistant aluminium alloy, and it is UL Listed and FM Approved.
- Hydraulically operated mechanical bell
- Wall mounted or direct online mounting (Type-A and Type-B)
- Inlet ¾ inch and drain 1 inch, BSPT or NPT
- Aluminium alloy, epoxy coated all over
- Can be fitted with the motor inside the building and the gong outside
Standards and approvals: UL Listed, FM Approved
Specifications
Specifications
| Specification | GA |
|---|---|
| MODEL | GA |
| MOUNTING TYPE | Type-A & Type-B |
| WATER WORKING PRESSURE | 250 PSI / 17.2 BAR |
| CONNECTION | Inlet : 3/4” BSPT (3/4” NPT) Drain : 1” BSPT (1” NPT) |
| GONG DIAMETER | 205mm (8”) |
| GONG DEPTH | 50mm (2”) |
| FINISH | Red RAL 3001 |
| WEIGHT (Approx) | 3.0 Kg |
| ORDERING INFORMATION | Mounting Type |
Specifications as published by HD Fire. Please confirm the exact model with us before ordering.
