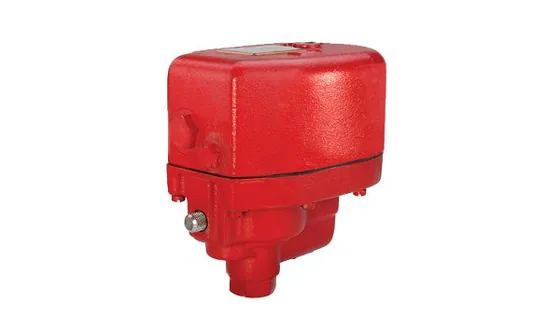

Supplier for TycoTyco Model ACC-1 Dry Pipe Valve Accelerator, External Resetting (TFP1112)
A mechanical quick opening device for the Tyco 2-1/2, 3, 4 and 6 inch DPV-1 dry pipe valve that shortens valve operating time after a sprinkler opens.
- Adjusts to small and slow pressure changes but trips on a rapid, steady drop
- On tripping, sends system air to the DPV-1 intermediate chamber so the valve opens
- Anti-flood device seals and latches at once; a ball float protects the pilot chamber if the valve trips by accident
- Maximum working water pressure 250 psi; pressure decay for trip 1 psi per minute
- Direct replacement for the Central Model B, Gem Model F311 and Star Model S430
- Tyco lists UL and ULC Listing, FM and LPCB Approval, and use in VdS approved DPV-1 trim
Standards and approvals: UL and ULC Listed, FM Approved, LPCB Approved, VdS Approved
Specifications
Specifications
| Specification | Details |
|---|---|
| Maximum Working Water Pressure | 250 psi (17,2 bar) |
| Pressure Decay For Trip | 1 psi/min (0,07 bar/min) |
Specifications as published by Tyco. Please confirm the exact model with us before ordering.
